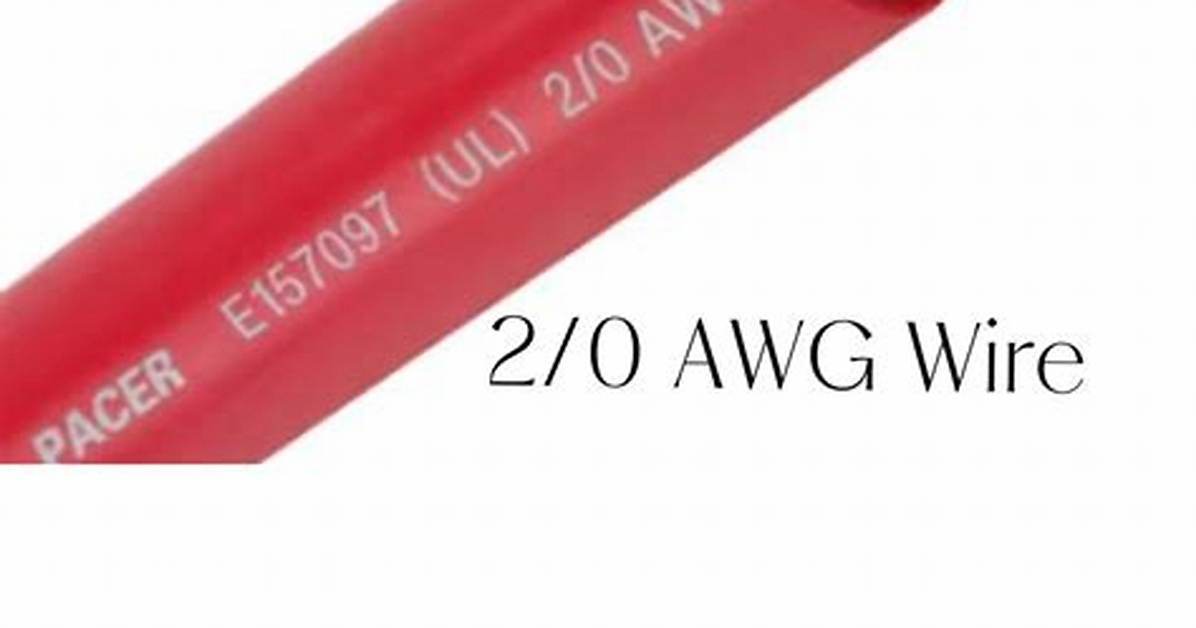

2 Ought Wire
2 Awg Will Handle Around 94 Amps, While 2/0 Awg Will Handle Around 190 Amps. the Length of the Wire Must Be Considered as Well as the % Voltage Drop in Order...
2 AWG will handle around 94 Amps, while 2/0 AWG will handle around 190 Amps. The length of the wire must be considered as well as the % voltage drop in order for this to be true. For a 3% drop where the load is less than 20 feet from the battery and you are drawing 100 Amps, you would need 2/0.
What is an ought wire?
The term “aught” (zero) is used for wire 1/0 AWG and larger. The number “0” in the size is “aught”
Must Read
Which is bigger 2 AWG or 4 AWG?
The bigger the AWG number, the smaller the physical size of the wire. An AWG of 40 is the smallest and 0000 is the largest. For every 6 gauge decrease, the wire diameter doubles and for every 3 gauge decrease, the sectional cross area doubles.
What size copper wire do you need for 100 amp service?
For 100 AMP service, you’ll need a #4 AWG copper wire or #2 AWG aluminum or copper-clad wire.
What is bigger 1 0 AWG or 2 0 AWG?
Which battery cable is bigger, 1/0 or 2/0? Generally speaking, the number that comes before the “/” denotes the number of zeros the gauge is. 1/0 battery cable is 0 AWG, whereas 2/0 battery cable is 00 AWG. The more the number of zeros indicating a cable’s American Wire Gauge measurement, the bigger the cable.
How many amps will 2 AWG carry?
Well, at standard temperature of 75°C, the 2 gauge wire has a 115 amps ampacity. That means that any 2 gauge copper wire can, at that temperature, handle up to 115 amps safely.
What is #2 aluminum wire?
#2 Stranded Aluminum XHHW-2 Wire
XHHW-2 are primarily used in air duct, conduit or recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code.
Which is the smallest diameter wire?
A wire size of AWG 40 has the smallest diameter, being it’s the smallest wire.
What’s bigger than 0 gauge wire?
The larger the AWG number or wire guage, the smaller the physical size of the wire. The smallest AWG size is 40 and the largest is 0000 (4/0).
Does wire diameter include insulation?
AWG size does not include the size of the insulation protecting a wire. 0000 AWG is defined as 0.46 inches in diameter, and 36 AWG is defined as 0.005 inches in diameter.
What is thicker 2 gauge or 4 gauge?
The general rule of thumb is that the smaller the gauge number, the thicker the cable. The standardized method of measuring the thickness of a cable was established in 1857 in the United States.
What wire size is bigger 2 or 4?
A 2 gauge wire is thicker than a 4 gauge wire. In simple terms, the thicker the cable, the higher the current it can transfer. The American Wire Gauge (AWG) is used to describe the thickness of wires.
What does AWG stand for electrical wire?
AWG (American Wire Gauge) is a U.S. standard set of non-ferrous wire conductor sizes.
