Can Communication Error

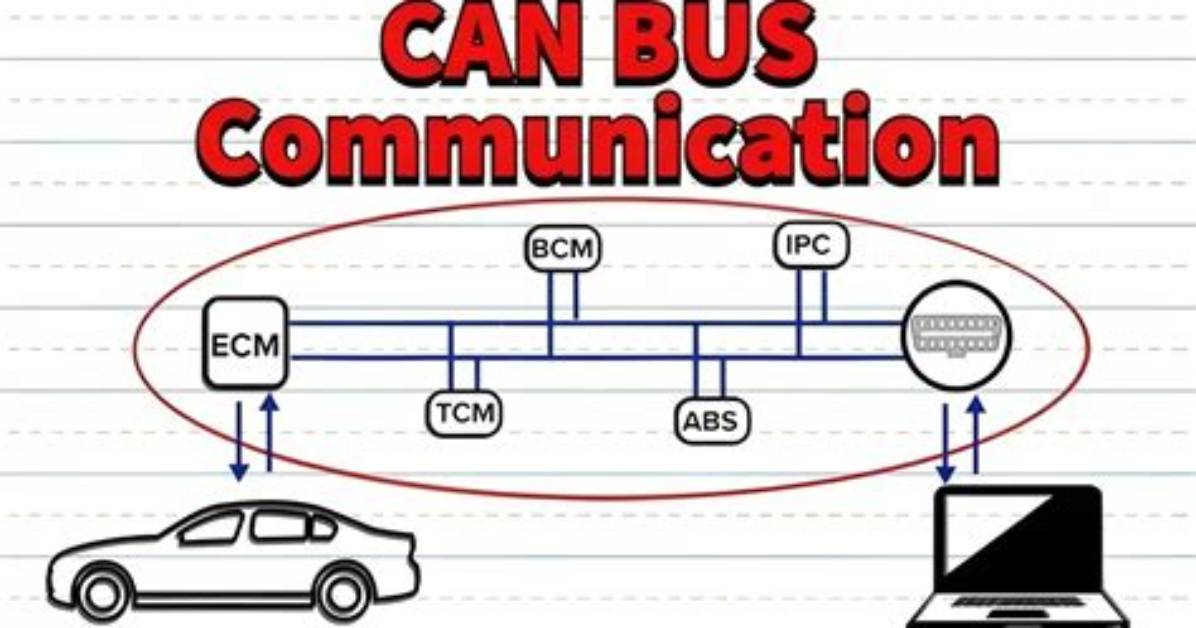

CANBUS is a high speed network which requires high quality wiring in order to operate properly. As such, it is sensitive to improper wiring. The majority of CANBUS communication problems are caused by poor wiring, incorrect termination, or the use of multiple frequencies on the same bus.

CAN bus communication lost?

The failure of communication on the CAN bus can be caused by several sources: Failure of the CAN bus wiring inside the harness. Failure of one of the components or control units linked to the CAN bus. Failure of the voltage supply or ground to individual components or control units.

CAN bus error types?

There are four different message types, or frames, on a CAN bus: … Remote Frame: requests a data frame transmission with a certain identifier node. Error Frame: transmitted when an error is detected. Overload Frame: provides extra delay between data and remote frames.
