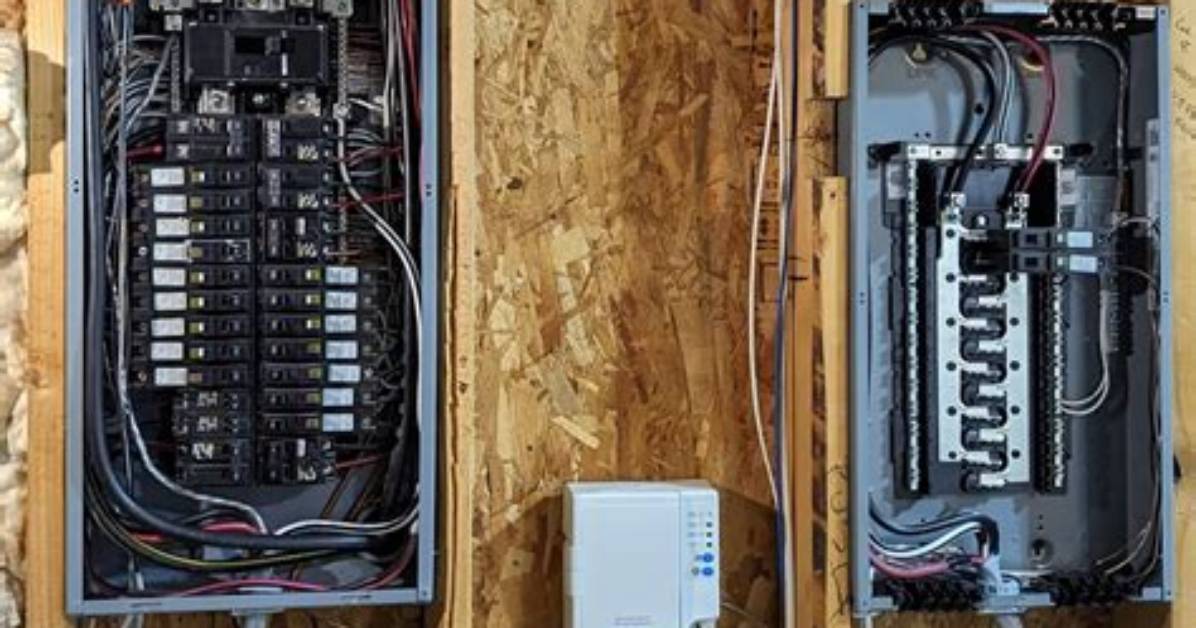

Can I Put a Sub Panel in My Garage?

Can I put a sub panel in my garage?

The sub-panel can be grounded at the garage. You will have to install a 6 foot ground bar outside the garage and run a ground wire from the sub-panel box to the ground rod. The National Electrical Code (NEC) requires the installation of ground fault circuit interrupters (GFCI ) for any outside wiring.

Can homeowner install sub panel?

It can also be dependent on the building codes in your specific community or subdivision. You will most likely need a permit to add a subpanel to your electric panel. No matter whether you are a licensed electrician or a DIY homeowner, you will likely need a permit to get the work to pass inspection.

What is the electrical box in the garage called?

Electric service panels have a number of different names: fuse box, fuse panel, circuit breaker panel. Today, most homes have what is officially called the electrical service panel, or simply, the service panel.

What height should electrical House panel be set in a building garage?

Other placement provisions include the height of installation. An electrical panel must be installed at least 4 feet off the ground, but cannot be higher than 6 feet. You need to also allow for the panel door to open at least 90 degrees.

Is 100 amp service enough for garage?

You will need #3 copper or #1 aluminum if you want to protect it with a 100 amp breaker. You can use whatever size panel you want at the garage but if you want to fully utilize it you should feed it with proper sized wire and protect that with a properly sized breaker.

Can you run a 100 amp sub panel off a 100 amp main panel?

You can run a 100 amp subpanel off a 100 amp main panel because the total can be up to twice the amperage of the box, meaning you could run a subpanel of up to 200 amps. What’s critical, though, is that the subpanel is safely and correctly connected to the main panel and that you don’t overload the service panel.

What wire do I use for a 100 amp sub-panel?

The cable must have a wire gauge sufficient to the amperage of the subpanel—a 100-amp subpanel requires #4 copper wires or, more commonly, #2 aluminum wires, for example. (Aluminum is often used for feeder cables because the cost is typically much lower than that of copper wires.)

Can you add a subpanel to a 100 amp service?

Is 50 amps enough for a garage?

For most garages, you will want to use a 50 amp breaker with 8/3 wire between the two buildings to handle the load. Install a sub-panel with its own main breaker so that the power can be shut off inside the garage for servicing the breakers in the panel.

Does garage wiring have to be in conduit?

Many garages contain one or more walls made of concrete or already drywalled. Cable installed on these exposed surfaces has to be protected by conduit. We show EMT (electrical metallic tubing; Photo 7), but you can also use rigid PVC conduit. tubing for one cable (14-2 or 12-2) and 3/4-in.
