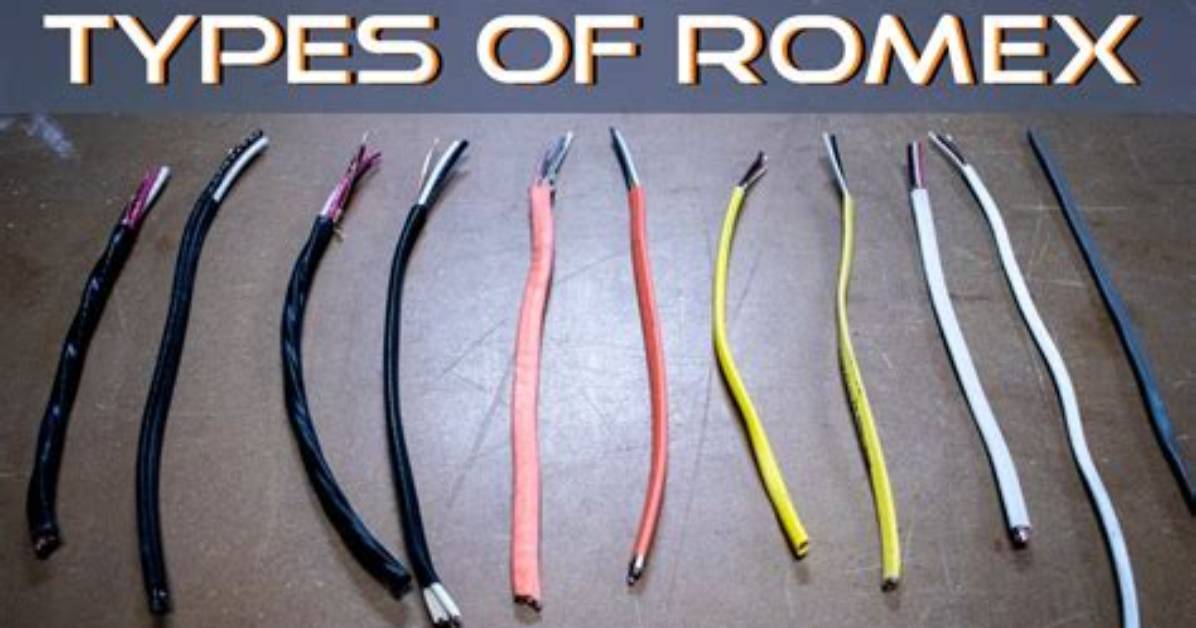

Can You Extend Romex Wire?
Usually the Sheathed Cable Includes a Bare Ground Conductor. Extending Romex Past a Receptacle or Fixture Means You'll Have to Tie into an Existing Circuit and...
.
Similarly, it is asked, can you extend electrical wire?
Whether you're swapping in a new light fixture or adding an outlet in the garage, you'll probably need to reconnect wires, connect a new wire to an old one, or extend a few wires. In other words, you'll need to do some splicing.
Similarly, can you splice Romex in a wall? You can't splice it in the wall or use a j-box that would be buried (code). You will need to back pull it and replace the run to the fixture. Concealed splicing is not permitted. The only correct way to splice is replace the section and/or do the splice in accessible junction boxes.
Thereof, can you use a junction box to extend wiring?
If you do need to extend the wires, yes, a junction box would be needed. It must remain accessible. You've pretty well identified your two choices; if you don't want to re-run longer cables, you'll need to splice in some additional cable.
Is it OK to splice electrical wire?
Safety Considerations Spliced wires are not to be held together with electrician's tape. Electrical wires are never left on their own in the wall cavity or ceiling. Instead, all splices must be contained within a junction box and the individual wires attached with wire nuts.
How do I extend my 220v wire?
- Shut off the circuit that sends power to the dryer (or the appliance that hooks into the 220-volt outlet) at the circuit breaker box.
- Choose a new location for your 220-volt outlet.
- Cut enough new six-gauge wire to run from the old location to the new location.
