Cellular Core Pvc

PVC or ABS plastic piping is often used on high-efficiency heating and water heating systems as vent piping for the exhaust gases, since the exhaust temperatures are relatively low. This piping is often vented out the side of the home.

What is the difference between cellular and solid core PVC?

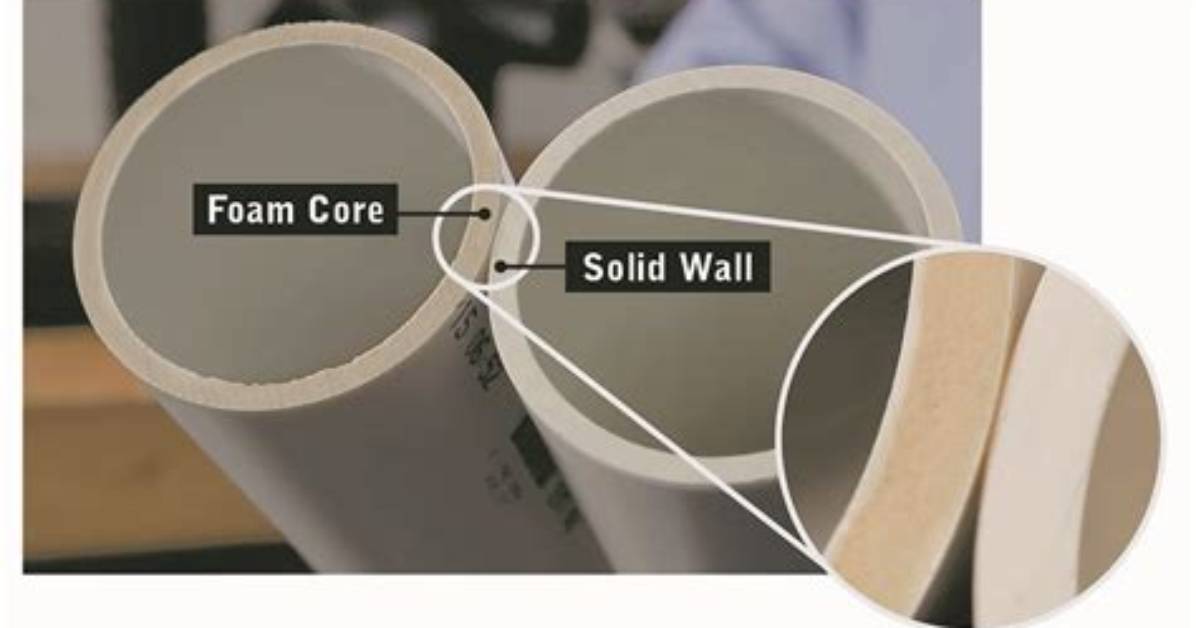

The inside and outside walls are solid PVC, while the inner core is cellular (or foamed) PVC, a material that includes tiny bubbles of entrained air. Cellular-core PVC pipe is available in various wall thicknesses, including Schedule 40 pipe for DWV and thin-wall sewer-grade pipe.

What is the difference between solid core and foam core PVC?

The main difference between PVC foam core pipe and solid PVC pipe is cost. PVC foam core pipe is significantly cheaper for the same length of pipe. The actual materials used to make foam core pipe are slightly more expensive per pound, but PVC foam core pipe is lighter.

Can you use cellular core PVC for furnace exhaust?

DO NOT use Cellular Core PVC/CPVC or Radel for venting exhaust.

What is stronger PVC or ABS?

PVC pipe is more flexible than ABS, while ABS is a bit stronger and can resist a higher shock or impact. Additionally, PVC has an advantage in that it’s better at muffling the sound of water as it flows through the pipework.

What type of PVC is used for furnace venting?

Despite the confusion, the safe practice would suggest the use of PVC schedule 40 pipes for the air intake vent on the furnace and CPVC for the exhaust flue vent, given its higher service temperature.

Is there different grades of ABS pipe?

Pressure ratings of ABS 1208, ABS 1210, ABS 1316 and ABS 2112. are indicated in the diagram below.

What is the difference between cell core and foam core ABS pipe?

You may see PVC or ABS pipe being sold as “cellular core” or “foam core.” This type of pipe is not solid. It is made with an inner PVC/ABS skin and an outer PVC/ABS skin with a foam/cellular core in between. This type of PVC/ABS is cheaper and lighter than solid core pipes but is also less stiff and not as strong.

Is cellular core Schedule 40?

PVC Schedule 40 Foam Core Pipe is for DWV purposes only. It is for Non-Pressure systems where temperatures will not exceed 140° F. It is coextruded and has a cellular core. PVC Schedule 40 Foam Core is lightweight, non-toxic and easy to install.

What schedule is solid core PVC?

PVC Schedule 40 DWV PE Solid Core Pipe.

Can you bury foam core pipe?

Foam core is meant to be buried. It’s not going to collapse but it isn’t pressure rated. What it won’t do is crack as easily when buried. It’s made for drain waste and vent situations in place of ABS.

Can I use Schedule 40 for DWV?

DWV parts are made with the same threading (NPT) and are made to the same size as standard PVC fittings. Since this is the case, DWV and schedule 40 and 80 pipe and fittings will fit together, but it isn’t recommended that they be used together.

Can I bury Schedule 40 PVC pipe?

Schedule 40 PVC Conduit is used in walls, floors and ceilings in accordance with NEC 352. According to NEC 352 it can also be buried directly into the earth, encased in concrete, and used in areas exposed to direct sunlight.

Can PVC be buried underground?

PVC and CPVC piping can be installed underground, but the installation must follow all ordinances, regulations, and codes. If you’re planning on installing PVC and CPVC piping, make sure to pay special attention to local pipe installation techniques since it will be installed deep within a wide range of sub soils.

What is cellular core ABS pipe?

ABS Foam Core Pipe is for drain, waste and vent purposes only. It is used in gravity fed waste elimination systems. It has a cellular core. It’s lightweight and easy to install. ABS Pipe has cellular core, requires no special tools for cutting.

What is Schedule 40 PVC pipe?

PVC Schedule 40 pipe is used for drainage and lower pressure water flow applications. Schedule 40 PVC pipe can handle up to 140 degrees F in temperature. Pipe lengths come in standard 10′ or 20′ sections. PVC schedule 40 pipe is available in plain end or belled end that do not require coupling for installation.

Does PVC expand with heat?

Like all materials, PVC expands with increasing temperatures and contracts with decreasing temperatures. Because the length-to-diameter ratios of PVC pipe and conduit products are generally very large, length change from temperature variation is the most noticeable.

Is PVC better than ABS?

PVC is more flexible than ABS, but ABS is stronger and more shock resistant. ABS is better at handling severely cold temperatures, but it can warp with exposure to direct sunlight. PVC is thought to be better at muffling the sound of running water. In most North American markets, the two types are priced similarly.

Can you use cellular core PVC for venting?

DO NOT use Cellular Core PVC/CPVC or Radel for venting exhaust. Use of these materials for exhaust may result in property damage, personal injury, or death.

What is the difference between solid core and cell core ABS pipe?

You may see PVC or ABS pipe being sold as “cellular core” or “foam core.” This type of pipe is not solid. It is made with an inner PVC/ABS skin and an outer PVC/ABS skin with a foam/cellular core in between. This type of PVC/ABS is cheaper and lighter than solid core pipes but is also less stiff and not as strong.
