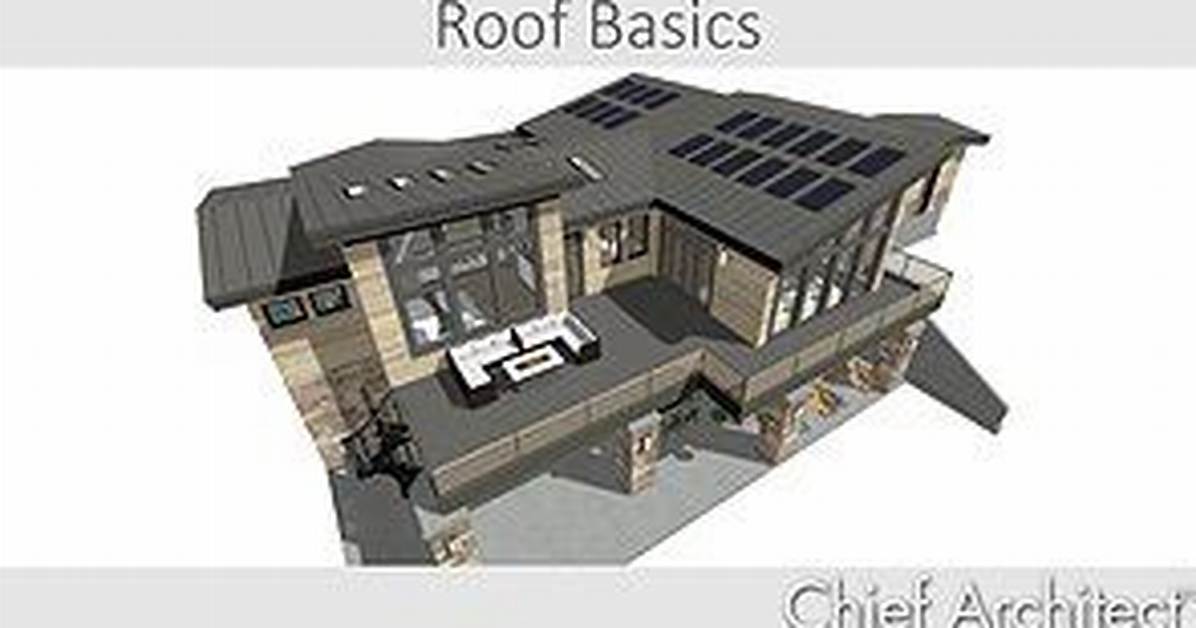

Chief Architect Roofs

ANSWER
Select Build> Wall> Straight Exterior Wall from the menu and draw four connecting walls to form an enclosed area. Select Build> Roof> Build Roof from the menu to open the Build Roof dialog. On the Roof panel of the Build Roof dialog: Select Build> Roof> Roof Plane from the menu.

How do you do a gable roof in chief architect?

To create an automatic gable roof
In Floor Plan view, click on a wall that you would like to form a gable over to select it, then click on the Open Object edit button.On the Roof panel of the Wall Specification dialog, select the Full Gable Wall option, then click OK to close the dialog and apply the change.

How do you change the roof pitch in chief architect?

Select Build> Roof> Build Roof from the menu, and in the Build Roof dialog, specify the desired default pitch for your roof, check either Build Roof Planes or Auto Rebuild Roofs, then click OK.

How do you join two roofs together?

How to Join the Roof Pitches?
Step 1 – Preparing the Area. Step 2 – Measuring the Length of the Joined Area. Step 3 – Prepare a Piece of Flashing Material. Step 4 – Place the Flashing on the Meeting Point. Step 5 – Sealing the Edges of The Roof with Lumber. Step 6 – Apply a Bead of the Sealant Material.

What is a roof plane?

The roof plane is an area of the roof that’s defined by “having four separate edges.” In more simple terms, it’s the flat surface of the roof that’s pitched or at an angle – the biggest and most noticeable part of the roof. The roof ridge is the horizontal line at the top of the roof, where two planes connect.

What is gable roof type?

A gable roof is a type of roof design where two sides slope downward toward the walls – and the other two sides include walls that extend from the bottom of the eaves to the peak of the ridge. The purpose of your home’s roof is to protect the entire structure (and you) from weather.

What is a 4 sided Roof called?

A mansard roof, also known as a French roof, is a four-sided roof with a double slope on each side that meet forming a low-pitched roof. The lower slope is much steeper than the upper. The sides can either be flat or curved, depending on the style.

How do you turn off Roof lines in chief architect?

To turn off the automatic generation of Attic Walls
Within your Chief Architect program, select Edit> Default Settings .Expand the list for Walls.Highlight General Wall and click the Edit button.In the General Wall Defaults dialog, uncheck Auto Rebuild Attic Walls to suppress this feature and click OK.

Can you lower a roof?

You either have to raise the height of the eaves or lower the height of the Ridge. Realistically speaking, to do it right would involve a complete tear-off of the roof structure, then a re-engineering and rebuild of the new flat roof.

How do you raise the roof height in chief architect?

Make sure you are on the floor you want to modify, then navigate to Edit> Default Settings . Expand the Floors and Rooms category, expand Floor Levels, select the desired floor, then click Edit. In the Floor Defaults dialog that displays, specify your desired ceiling and/or floor values, then click OK.

Do roof pitches have to match?

Unless you’re absolutely sure of the effect you’re after, avoid combining different roof pitches. More often than not, varied pitches look disorganized or, worse, like a construction error. Stick to a uniform pitch, and rely on the size and arrangement of roof masses for effect.
