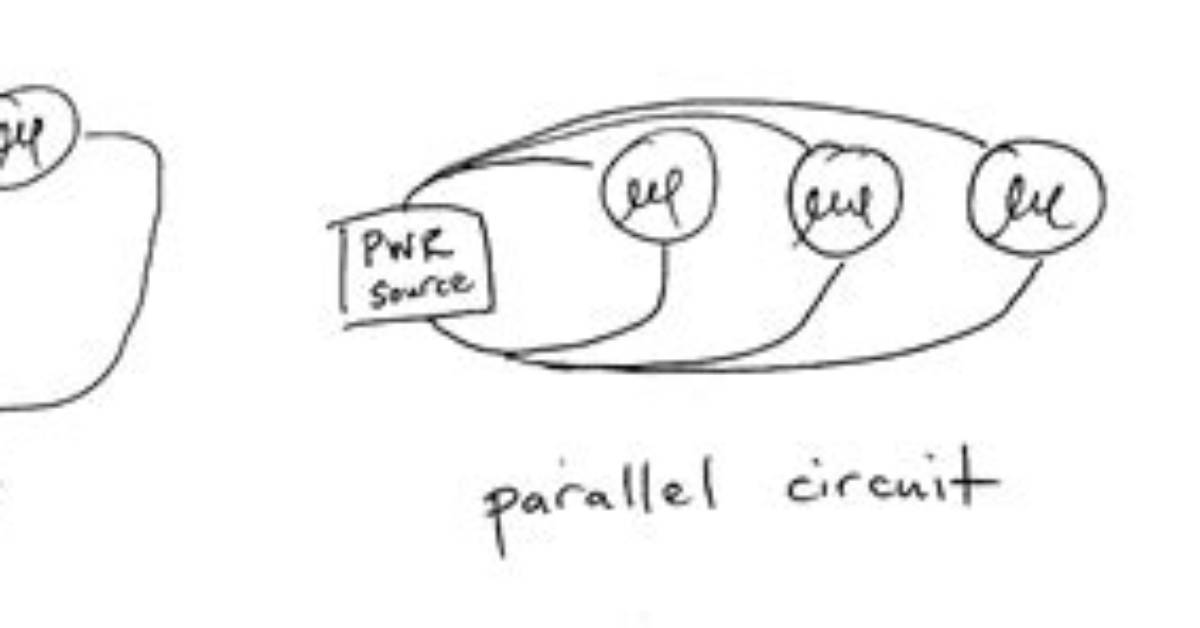

Daisy Chain vs Parallel

Although this type of connection is what people often consider a daisy chain, in fact, the speakers are wired in parallel. The effect is the same as wiring each speaker directly to the output. In addition, be aware that the speakers’ total impedance load decreases when wiring speakers in parallel.

Is daisy chain the same as series?

A common misconception when doing receptacle wiring is that, when you daisy-chain them in a circuit, you’re wiring them in series. You’re actually wiring them in parallel, and that’s a whole different thing.

Is it OK to daisy chain electrical outlets?

What Can Happen if You Daisy Chain? Daisy chaining can cause a multitude of problems. When you plug multiple surge protectors, extensions cords, and power strips into one another, you are creating a fire hazard. The increased electrical demand on your home’s system can harm the wiring and outlets in your home.

Should I wire outlets in series or parallel?

It’s common to describe household wall receptacles that are wired together using the device terminals as wired in series. But, in fact, all household receptacles are always wired in parallel, and never in series. In a series circuit, current must pass through a load at each device.

How do I know if my outlets are daisy chained?

Ground connections on daisy-chained receptacles: Notice that only the hot and neutral wires are daisy-chained through the receptacle’s screws and copper strap.

How are outlets daisy chained?

Daisy chaining is the practice of running wires from receptacle to receptacles via either back-stabbing (sticking the wires in holes in the back of the receptacle—left of picture) or using the screws on the side of the receptacle (center of picture).

What is the advantage of daisy chain?

The main benefit of the daisy chain system is the simplicity of connecting computers and nodes. Daisy-chaining is a common method used by system administrators to add more or new machines to the network.

What is DisplayPort daisy chain?

Daisy chaining is the act of connecting many monitors using only one cable on one DisplayPort 1.2 Output and then one short cable between each DisplayPort 1.2 monitors.

What’s another word for daisy chain?

Hyponym for Daisy chain:

chain, concatenation.

Why are outlets wired in parallel?

Most standard 120-volt household circuits in your home are (or should be) parallel circuits. Outlets, switches, and light fixtures are wired in such a way that the hot and neutral wires maintain a continuous circuit pathway independent from the individual devices that draw their power from the circuit.

How many outlets can you piggyback?

You Can Use Another Electrical Outlet When:

(Don’t make matters worse by adding yet another outlet to the circuit.) Electrical codes restrict the number of lights or electrical outlets that can be connected to one circuit. Typically, you can have no more than eight lights or electrical outlets on a 15-amp circuit.

Can you wire GFCI in parallel?

You only need 1 GFCI outlet per circuit (assuming it’s at the beginning of the line and the rest of the outlets are loads). They are correctly wired in parallel – if they were in series, you wouldn’t get the correct voltage at the other outlets when there is any type of load present.

Why is parallel better than series?

Advantages of having appliances in parallel rather than in series: The p.d (voltage) across each lamp is fixed, so the lamp shines with the same brightness, irrespective of how many other lamps are switched on. Each lamp can be turned on and off independently; one lamp fails, the other can still be operated.

Why are outlets never wired in series?

When items are wired in series, the amount of energy going to each one lessens. So 3 outlets wired in series would mean each outlet would receive a little amount of electrical energy.

What is the advantage of parallel circuit?

Regarding parallel circuits, appliances can be connected and disconnected to the circuit without affecting other parts of it. Another advantage of parallel circuits is that the voltage is constant across all parts of the circuit. A disadvantage of parallel circuits is that they require more wiring.

Is it better to pigtail outlets?

When it is done correctly, a pigtail in an outlet is a safe and effective way of managing space in an outlet box. The pigtail method is often seen as a more secure connection because if there is a fault on the device power will still flow to the rest of the circuit.

How many outlets should be on a 15 amp breaker?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

Can extension cords be daisy chained?

“Daisy chaining” is the connection of two or more extension cords or power strips. Daisy chaining is usually a result of inadequate access to power outlets and can lead to overloaded circuits and fire risk.
