Difference Between Dataframe, Dataset, and Rdd in Spark

First thing is DataFrame was evolved from SchemaRDD.

Yes.. conversion between Dataframe and RDD is absolutely possible.

Below are some sample code snippets.

• df.rdd is RDD[Row]

Below are some of options to create dataframe.

• 1) yourrddOffrow.toDF converts to DataFrame.

• 2) Using createDataFrame of sql context

  val df = spark.createDataFrame(rddOfRow, schema)

where schema can be from some of below options as described by nice SO post..
From scala case class and scala reflection api

import org.apache.spark.sql.catalyst.ScalaReflection
val schema = ScalaReflection.schemaFor[YourScalacaseClass].dataType.asInstanceOf[StructType]

OR using Encoders

import org.apache.spark.sql.Encoders
val mySchema = Encoders.product[MyCaseClass].schema

as described by Schema can also be created using StructType and StructField

val schema = new StructType()
  .add(StructField("id", StringType, true))
  .add(StructField("col1", DoubleType, true))
  .add(StructField("col2", DoubleType, true)) etc...

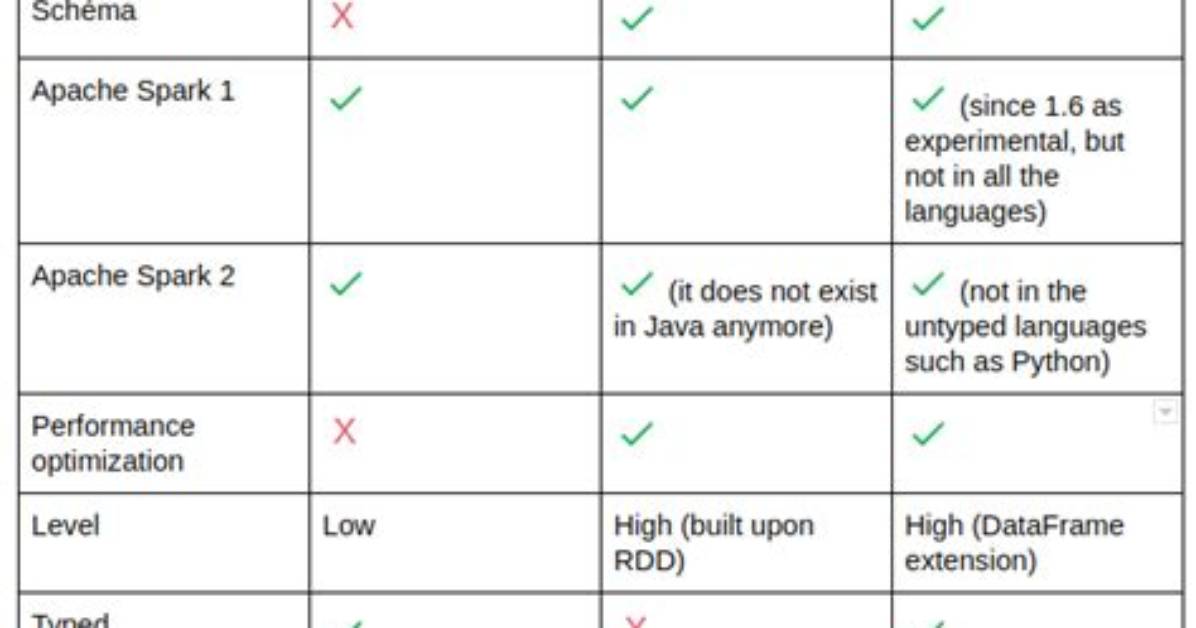

In fact there Are Now 3 Apache Spark APIs..

1. Must Read

   • How to Search on Github to Get Exact String Matches, Including Special Characters
   • How Do I Tokenize a String Sentence in Nltk?

   RDD API :

The RDD (Resilient Distributed Dataset) API has been in Spark since the 1.0 release.

The RDD API provides many transformation methods, such as map(), filter(), and reduce() for performing computations on the data. Each of these methods results in a new RDD representing the transformed data. However, these methods are just defining the operations to be performed and the transformations are not performed until an action method is called. Examples of action methods are collect() and saveAsObjectFile().

RDD Example:

rdd.filter(_.age > 21) // transformation
   .map(_.last)// transformation
.saveAsObjectFile("under21.bin") // action

Example: Filter by attribute with RDD

rdd.filter(_.age > 21)
