Do Differential Signals Need Ground?

directly connect differential signals to the receiver chip -- "DC-coupled". They require a ground connection to keep the signal at the receiver's end of the bus within the common-mode range of the receiver chip.

What is a differential signal ground?

It involves a single wire or trace between a driver and a receiver. The signal propagates down the trace and returns through the ground system.1. Differential mode involves a pair of traces (wires) between the driver and receiver.

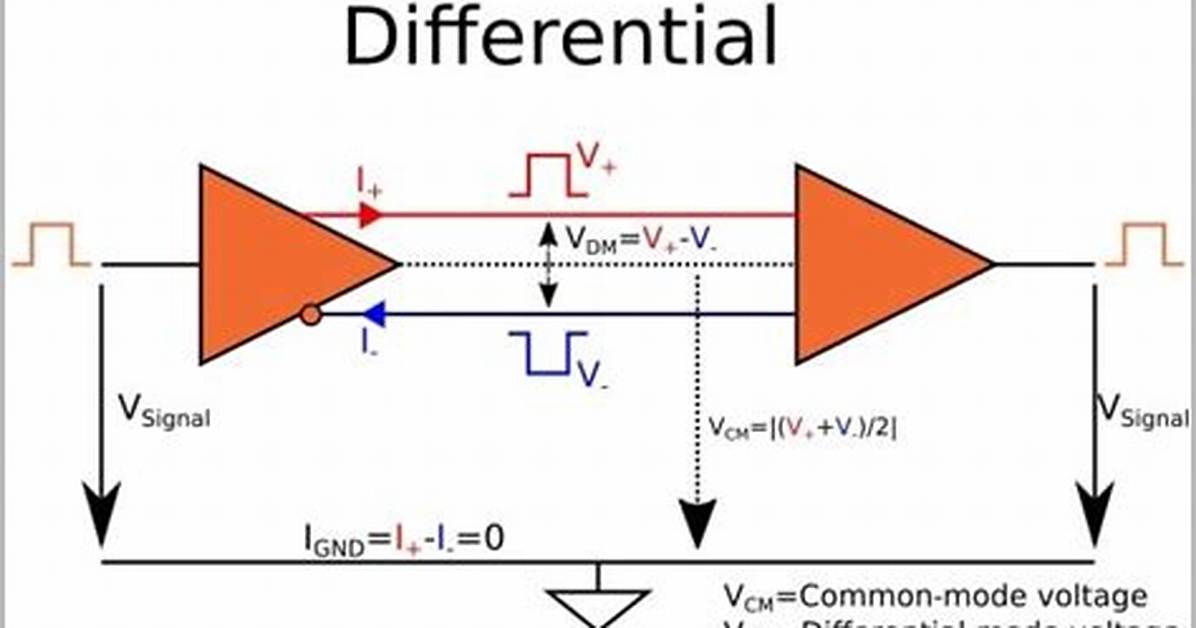

How does a differential signal work?

Differential signalling is a method for electrically transmitting information using two complementary signals. The technique sends the same electrical signal as a differential pair of signals, each in its own conductor.
