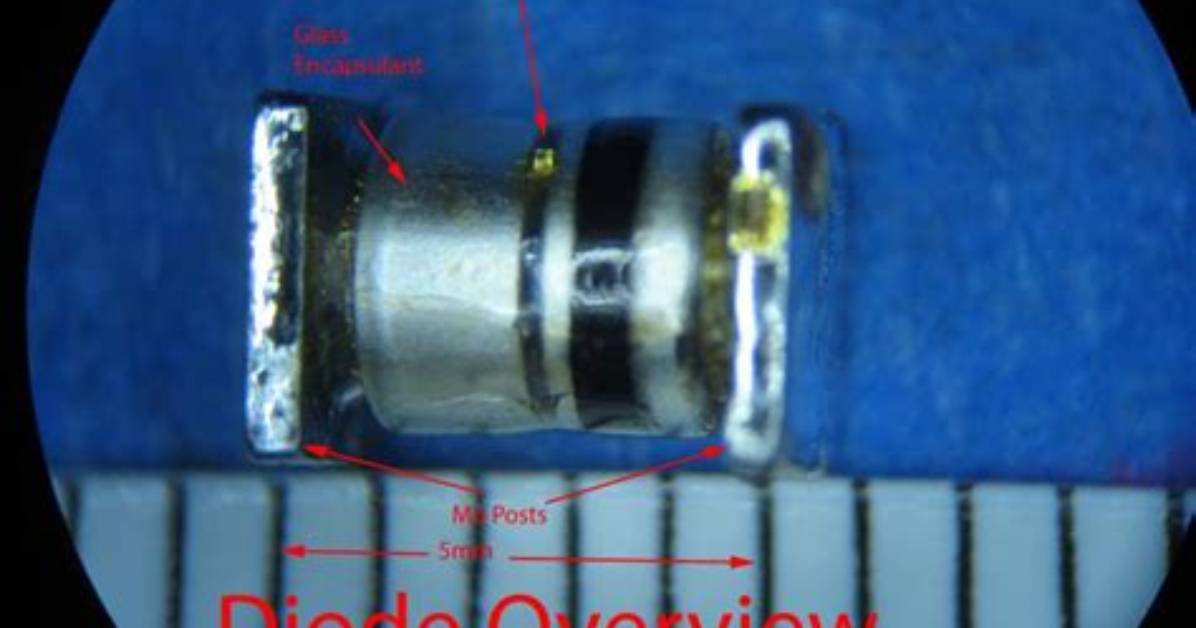

Do Diodes Fail Open or Short?
Yes, It Is Shorted or Open. It May Fail Either Way. in Many Cases, I've Found That Small Signal Diodes Tend to Fail Open, and Power Diodes Tend to Fail Short...
.
Just so, can a diode fail short?
Issue: A Shorted Diode However, a failed diode can short out too. The common reasons for a diode failure are excessive forward current and a large reverse voltage. Usually, large reverse voltage leads to a shorted diode while overcurrent makes it fail open.
Similarly, do LEDs fail open or short? 4 Answers. LEDs that fail catastrophically usually fail open circuit but some occasionally fail short circuit. Large groups of LEDs are often arranged as say X strings of Y LEDs in series in each string.
Herein, what happens when a diode is shorted?
A bad (opened) diode does not allow current to flow in either direction. A multimeter will display OL in both directions when the diode is opened. A shorted diode has the same voltage drop reading (approximately 0.4 V) in both directions.
Why do diode burn out?
A diode typically fails to open happens due to over current. This is called metallization burnout and can occur from things like EOS (Electrical Over Stress). Over current causes excessive heating and literally burns the metal away.
