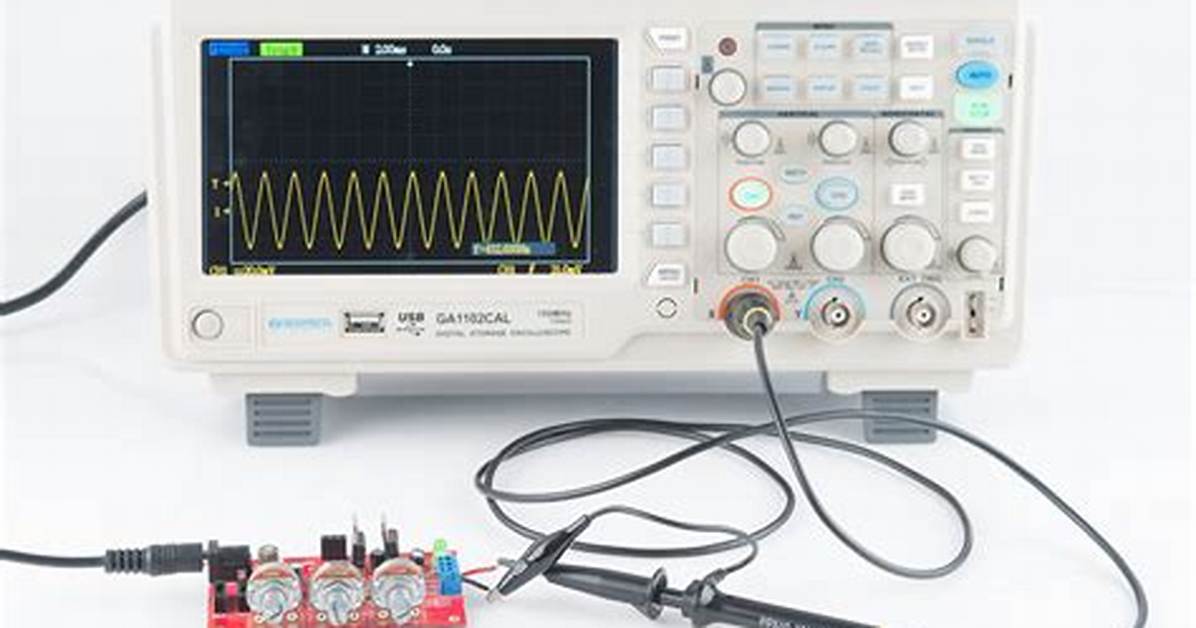

Do Oscilloscopes Need Calibration?
Calibrating Your Oscilloscope Will Maintain the Integrity of Your Research. Oscilloscopes Need to Read Data Accurately. If the Oscilloscope Is out-of-Tolerance...
Calibrating your oscilloscope will maintain the integrity of your research. Oscilloscopes need to read data accurately. If the oscilloscope is out-of-tolerance (OOT), then the product that is being measured will result in false information. ... Calibration should be a proactive practice.
How do you calibrate an oscilloscope?
- Examine all the controls on your scope and set them to normal positions. ...
- Turn your oscilloscope on. ...
- Set the VOLTS/DIV control to 1. ...
- Set the TIME/DIV control to 1 ms. ...
- Set the Trigger switch to Auto. ...
- Connect a probe to the input connector.
Are oscilloscopes calibrated?
In this case, the calibration of the vertical deflection is performed with respect to a traceable DC voltage. Using a digital voltmeter or a DC calibrator as reference standard, in a first step, any kind of amplitude calibrator (e.g. oscilloscope calibrator) is calibrated (see Fig. 4).
