Do You Need a Neutral Wire for 220V?
220 Doesn't 'Need' Neutral Because Each Pulse Uses the off Phase of the Other Side for This Purpose and Ac Back and Forth but Where Is the Circuit Since the...
.
People also ask, do you need a neutral wire for 240v?
A 240V load needs two “ungrounded conductors”, one from each end of the secondary coil, but no “neutral” which is only needed for 120V loads. However, some loads are rated 120/240V and need both ungrounded conductors AND the neutral.

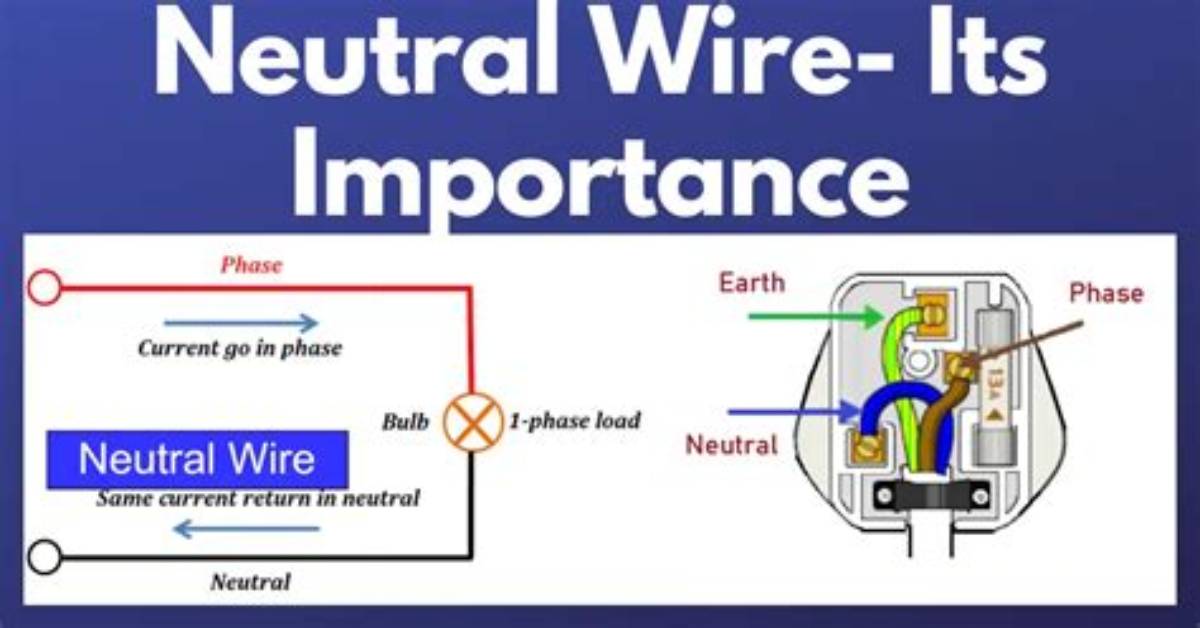

Also Know, does neutral carry voltage? Role of the Neutral Conductor in Electric Circuits Although voltage is carried by the live conductor, a neutral conductor is required for two important functions: Serving as a zero-voltage reference point. Providing a return path for the current supplied through the live conductor.
People also ask, do I need a neutral wire?
In a single phase circuit, Live wire is the forward path of current whereas Neutral is the return path of current. hence neutral wire is necessary. A circuit can be either star or delta connected. In star connection we can have a neutral wire but it is not customary to provide one.
How many wires do you need for 220?
Choosing Cable for a 20-Amp, 220-Volt Outlet You need 12-gauge cable for a 20-amp circuit no matter whether the circuit is 110 or 220 volts. You won't be using a neutral wire, so the cable should have only two hot wires, which are red and black, and a bare ground wire.
