Does a Jfet Have a Body Diode?

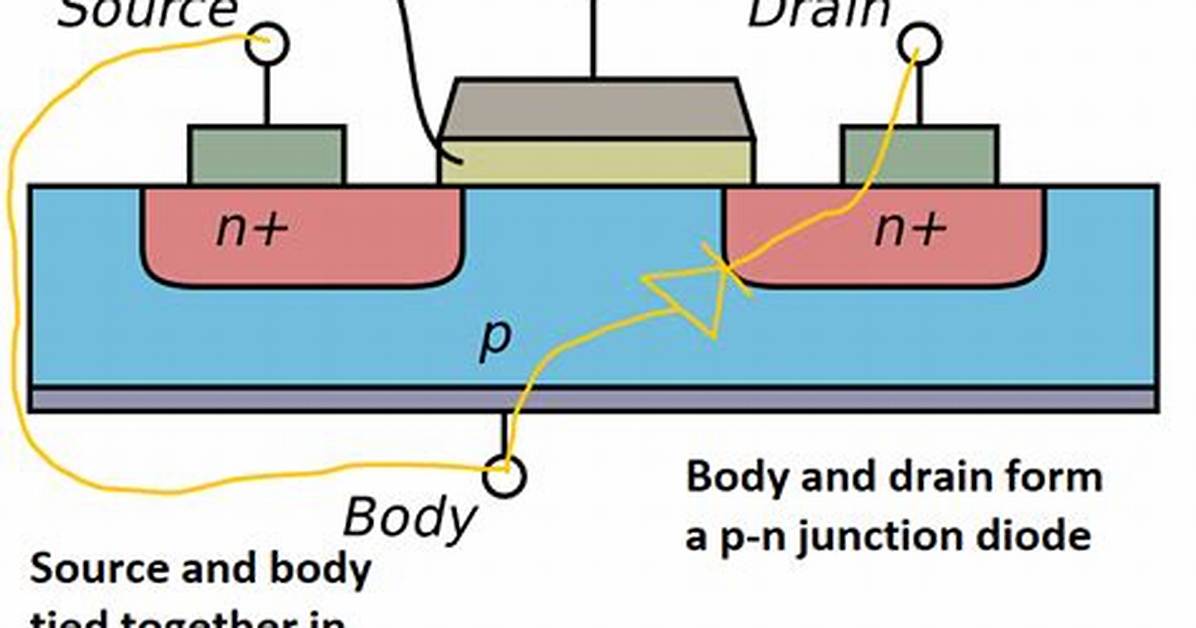

The Significance of the Intrinsic Body Diodes Inside MOSFETs
These diodes are appropriately named body diodes, and with the exception of JFETs, they are intrinsic to any FET type. ... Current typically flows from the drain to the source in N-channel FET applications because of the body diode polarity.

Does IGBT have body diode?

When learning power electronics, we all discovered that MOSFETs can conduct in reverse (because they have a body diode) and IGBTs can't (because they don't).

Must Read

How many diodes does JFET have?

Because of this, a JFET is similar to two diodes. The gate and the source form one of the diodes, and the drain form the other diode. These two diodes are usually referred as the gate-source diode and the gate-drain diode.
