Does Ecobee3 Lite Require Ac Wire?

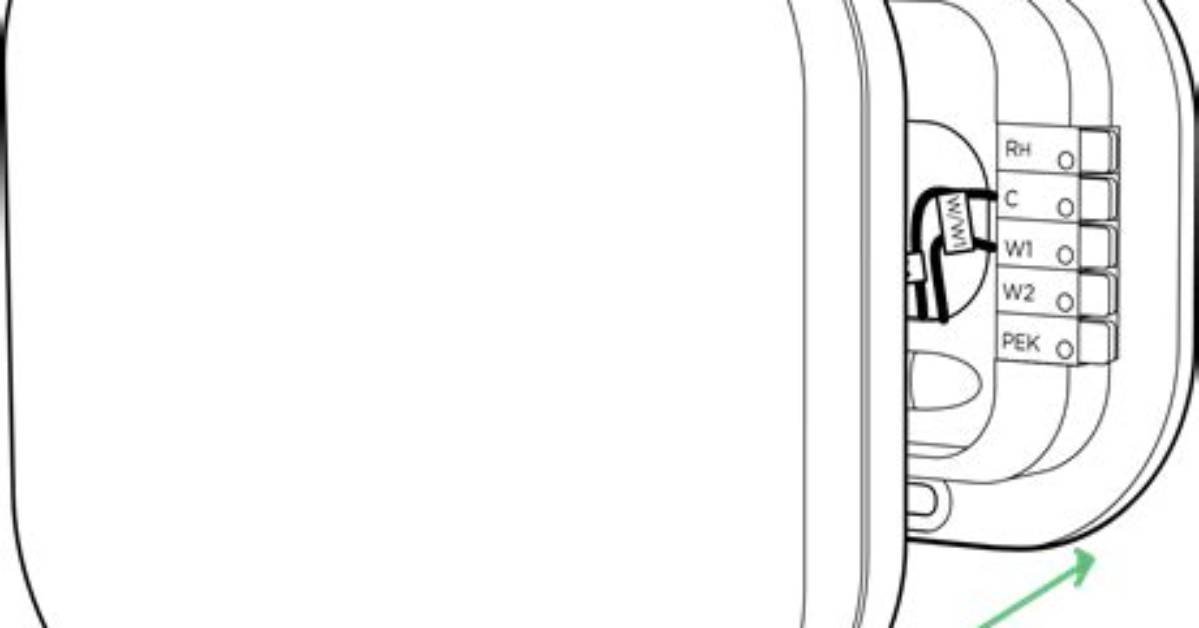

Pictured: Ecobee3 Lite, One of Our Favorite Thermostats. Even Though It Comes with an Adapter for Missing C-Wires, Ecobee Is What We'd Pick Even for Systems...
Pictured: ecobee3 lite, one of our favorite thermostats. Even though it comes with an adapter for missing c-wires, ecobee is what we'd pick even for systems with a c-wire. If you've got a 24v HVAC system but no C-wire, check out the ecobee product line.
Regarding this, does the ecobee4 require AC wire?
If you have a C-wire, it will power your ecobee. You won't need the PEK included in the box.
Furthermore, how many wires does the ecobee need? ecobee thermostats require a C (common) wire to power on. If you only have two wires at your current thermostat, there are a few installation options available, depending on your application. Note: You will not be able to install the Power Extender Kit (PEK) with heat-only 2-wire systems.
Moreover, how do I wire ecobee3 Lite?
If your ecobee doesn't turn on, please try these steps.
- Check your wire and terminal connection.
- Check your HVAC cover panel.
- Ensure your R wire is inserted into the proper terminal.
- Ensure your wire and terminal connections in the Power Extender Kit are secure.
Do all WiFi thermostats require AC wire?
A C-wire or common wire is a power supply that is required for your smart thermostat to work properly. Unfortunately, most of the older thermostat models didn't require one and that is the reason why many homes do not have a C-wire installed. Almost all WiFi thermostat models require a common wire.
What can I use if I don't have AC wire?
Even though it comes with an adapter for missing c-wires, ecobee is what we'd pick even for systems with a c-wire. If you've got a 24v HVAC system but no C-wire, check out the ecobee product line. Every ecobee ships with an adapter that you can install yourself at your furnace to make up for a missing C-wire.
How do I install a WIFI thermostat without C wire?
To add a C-wire to your furnace, follow these steps:
- Turn off the breaker for the furnace.
- Remove the access panel and locate the wires that connect to the thermostat.
- Disconnect the thermostat wire from the G terminal.
- Note: If you have both central heat and air, then you'll need to make a jumper using an 18 AWG wire.
What is a common wire HVAC?
In most cases, Google Nest thermostats can charge their built-in battery using your system's heating and cooling wires. A common wire is simply a wire that's dedicated to delivering constant power to your thermostat. Unlike the other wires connected to your thermostat it doesn't control heating or cooling functions.
What is the fastest way to wire a stat?
Connect the receiver module's yellow wire to the Y terminal. Connect the receiver module's red wire to the R terminal. Connect the receiver module's green wire to the G terminal. Connect the receiver module's black wire to the C terminal.
What is the C wire?
The c wire is an extra wire that can be used to provide a return path for continuous 24V power for any application. It's normally used to provide a return path to power the thermostat. The “c” stands for common. It is often labeled as “c” on thermostat backplates.
Why does my thermostat only have 2 wires?
If your heating system has only two wires, the job of the thermostat is simple. All it has to do is turn the heat or the cooling on and off. There is also no thermostat blue wire, or common wire, to power the thermostat, so it has to operate on its own, either using batteries or mechanical temperature detection.
What's the difference between ecobee3 and ecobee3 Lite?
The Differences Between Ecobee3 and Ecobee3 Lite. The Ecobee3 Lite does not support humidifiers, dehumidifiers, or ventilators while the Ecobee3 does. The Lite does not come with room sensors. The Ecobee3 comes with up to 3 room sensors depending on the size kit you buy.
What color is AC wire?
Y wire (yellow, for air conditioning). W wire (white, for heat). C wire (blue or black, common for 24-volt power to the thermostat).
Does ecobee3 Lite have a battery?
There's one caveat: The Ecobee3 Lite doesn't offer a rechargeable battery like Nest, so you'll need to have a C wire to power the digital display or install the included Power Extender Kit. Shut off power to your thermostat at the circuit breaker.
How does ecobee3 Lite work?
The Ecobee3 Lite looks identical both physically and touchscreen interface-wise, and it uses the same app. It requires the presence of a C-wire for power. The Ecobee3 Lite supports fewer HVAC components than the more-expensive Ecobee4 (which also comes with two remote sensors).
Does ecobee3 Lite come with power extender kit?
However, both the ecobee3 lite and ecobee4 come with a PEK included in the box for installation without a C wire.
Which is better nest or ecobee?
Ecobee is more efficient than Nest at knowing if you're home or away because it has a motion sensor on the base and uses additional SmartSensors to detect motion and temperature. One room sensor is included with Ecobee SmartThermostat (none with Ecobee3 Lite), and you can add up to 32 SmartSensors to any Ecobee system.
What is the G wire on a thermostat?
Thermostat Terminal Letters
G: The G terminal controls the fan relay and is responsible for turning the blower fan on and off automatically or manually via the thermostat. RC: The RC terminal is the 24-volt cooling power supply. RH: The RH terminal is the 24-volt heating power supply.How does add a wire work?
The Venstar Add-a-wire and ecobee's Power Extender Kit somehow multiplex two of your existing thermostat wires (e.g. the ones that switch on your heat or fan) into one. That frees up one wire so that you can use it for constant power.
Where do you connect the C wire on a boiler?
To get a C wire to one or more of the thermostats, you'll simply run a wire from the other side of the transformer on the wall. The original wire from the transformer should be connected to the R terminal on the thermostat, while the new C wire should be connected to the C terminal on the new thermostat.
How do you know if you have C wire?
It is easy to see if you already have a c-wire connected to your system. Simply remove your current thermostat face from its baseplate and look for the terminal labeled with the letter “c.” If this terminal has a wire attached to it, you have an active “c-wire.”
Can you install ecobee yourself?
Can I install it myself? Sure thing! Installation typically takes 45 minutes or less. Simply follow the instructions included in the ecobee mobile app, or in the manual that was included in the box with your ecobee.
