Door Swing Clearance

Doors shall not swing into the clear floor space or clearance required for any fixture. Doors shall be permitted to swing into the required turning space.

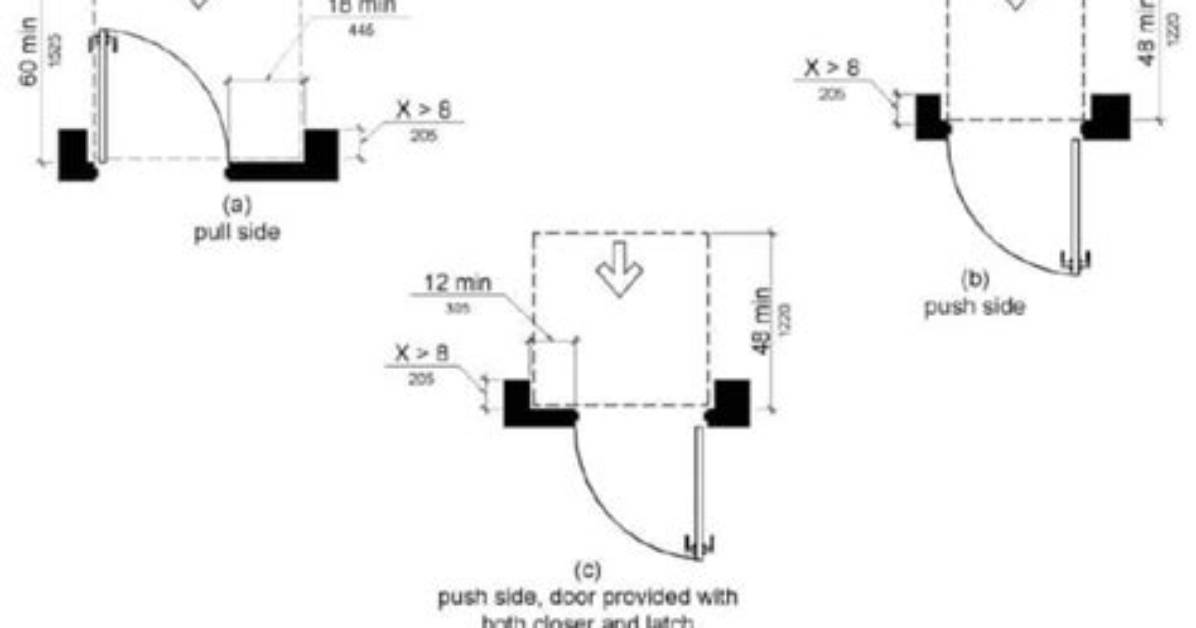

How much clearance should you allow on the pull side of a door swing with a front approach?

Front approaches to pull side of swinging doors shall have maneuvering space that extends from the hinge side of the door to 18 inches (455 mm) minimum, 24 inches (610 mm) preferred, beyond the latch side of the door and 60 inches (1525 mm) minimum perpendicular to the doorway.

How much gap do you leave between door and frame?

Hold the new door in the frame to see if it needs adjustment. A well fitted door should have a 2mm gap on either side and at the top. The gap at the bottom will depend on the thickness of your flooring/carpet.

Can door swing into water closet clearance?

The clearance of the water closet in a compartment should be either 56″ for a wall hung or 59″ if it’s floor mounted. The door can swing out and can also swing in, but the door may not swing into that minimum clearance.

Can handrails overlap door maneuvering clearances?

No, handrails and other elements cannot overlap door maneuvering clearances. However, the door maneuvering clearance can be offset up to 8” from the face of the door to accommodate wall thickness, casework, handrails, moldings, and other elements at doorways.

What is Ada knee clearance?

Where knee clearance is required under an element as part of a clear floor space, the knee clearance shall be 11 inches (280 mm) deep minimum at 9 inches (230 mm) above the finish floor or ground, and 8 inches (205 mm) deep minimum at 27 inches (685 mm) above the finish floor or ground. 306.3.

Can a exterior door swing out?

The best part is that you can get an inswing or outswing Front Door nowadays depending on your needs. Why would you choose one over the other? The truth is that most entry doors are inswing door meaning they swing inside the home. That doesn’t mean there isn’t benefits to choosing and outswing door.

Is my door inswing or outswing?

If the door swings forward and away from you towards the interior of the room you’re facing, it is an inswing door. If you pull the door toward you and away from the interior of the room you’re facing, it is an outswing door.

Should a door swing left or right?

There is no right or wrong way. If there are no obstructions in the room, you may want to reach for the leaver in whatever way feels most comfortable.

What is the clear opening width of a 32 inch door?

By ADA standards, the clear width of a door opening must be a minimum of 32 inches. This clear width measurement is taken between the face of the door and the stop of the frame with the door open to 90 degrees (Figure A). In pairs, at least one of the active leaves must comply with this clear width requirement.

What is the minimum clear width for doorways and doors in a barrier free path of travel when in the open position?

A-3.8.

Every doorway that is located in a barrier-free path of travel must have a clear width of not less than 860mm (33 7/8’1 when the door is in the open position and therefore it is important that this dimension be measured correctly.

What is a door clearance?

1. The clearance between the bottom of a door and the finished floor. 2.
