Doorbell Wire

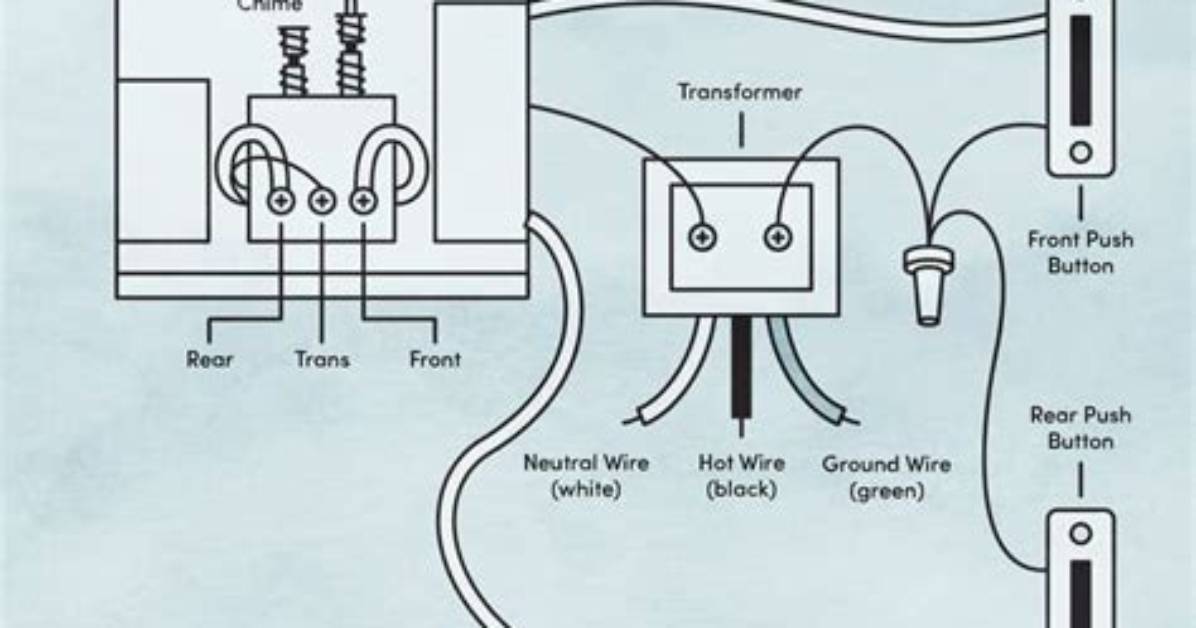

Doorbells are typically wired with 18 gauge wire, also referred to as “bell” wire. Terminals on the buzzer/bell are commonly labeled “F”, “R”, and “C”. “C” stands for common and should be tied to one of screw terminals coming out of the transformer. “F” stands from front and is used for the front door bell.

Will a doorbell wire shock you?

Most of the doorbell circuit is “low-voltage” current that won’t give you a shock if you come in contact with the wires. A transformer reduces the 120-volts carried by most electrical circuits to the 10 to 16 volts necessary to run the doorbell.

How many wires does a doorbell have?

Ground, Neutral & Hot Wires: These three wires connect the doorbell transformer to your home’s electrical system. Typically, the ground wire will be green, the neutral wire will be white, and the hot (or live) wire will be black.

How far can I run doorbell wire?

The resistance of #12 copper wire is 1.6 ohms/1000 feet. So the maximum length of wire = (. 4/1.6) x 1000 = 250 feet, out plus back. Maximum run is 125 feet.

Where does a doorbell get its power?

Doorbells get their power from the home’s electrical system. The doorbell switch has two terminals that are wired to the doorbell transformer located in the house. The transformer is a metal box with two terminals connected to the doorbell wires.

Can doorbell wires touch?

Because of its low voltage, doorbell components and wiring are safe to handle, even when electricity is flowing through them.

Do I need to turn off power to install doorbell?

Users do not need to turn the power off to install the standard Ring Doorbell that comes with its own rechargeable battery. However, to install the Ring Doorbell Pro, users should turn off the breaker that supplies power to the doorbell’s wires.

Can I use 22 gauge wire for a doorbell?

22-Gauge Wire (Unusable)

A 22-gauge wire is a bit on the thin side and may not provide all the power that the Ring Video Doorbell Pro needs. To determine if your wire is 22-gauge, unfold a standard paper clip.

Can you splice doorbell wire?

Doorbells are low-voltage applications, usually about 16 volts in total, so the wires are smaller and more fragile than regular 120-volt wiring. In all other respects, however, they splice together in virtually the same way. For a basic splice, all you need is a wire stripper and black electrical tape.

Can doorbells use Cat 6?

Most doorbell cameras either don’t need them or don’t recommend them, and some also require CAT6 cables instead. It’s important that a homeowner research what cables might be needed before they start using CAT5, in case that’s not going to work for that particular brand and type of doorbell.

How do I know what breaker is for my doorbell?

Your electrical panel should have labels next to each switch, or circuit breaker. Your current mechanical doorbell should be labeled.

How do I know if my doorbell has power?

To use a multimeter to check the voltage of your doorbell transformer:
Disconnect your existing doorbell. Set the knob on your multimeter to AC (the V with a wavy line on top or next to it).Connect the two probes from the multimeter to the wires from your doorbell.Read the voltage level on your multimeter’s display.

How do I find the doorbell wire in my wall?

You may find a few inches of wire exposed near the transformer or several yards running through an unfinished basement. Doorbell cable consists of three or more thin wires inside a plastic sheath (Photo 1). Look for areas where the sheath is damaged, and also for pinched or badly kinked sections.
