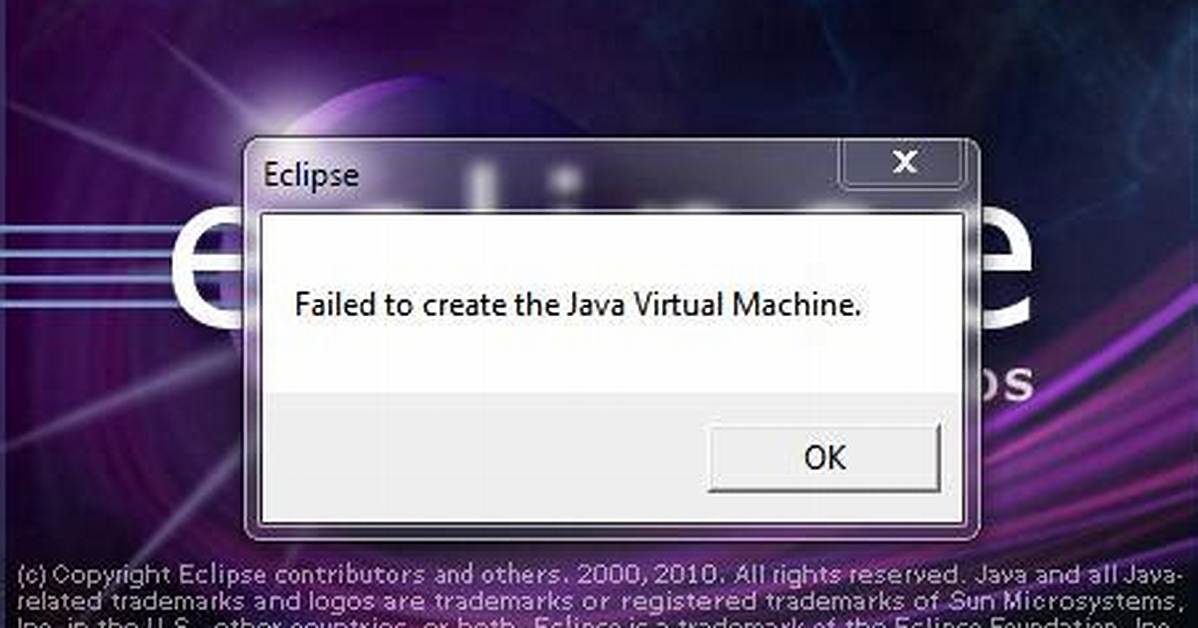

Eclipse Error: 'Failed to Create the Java Virtual Machine'

1. Open the eclipse.ini file from your eclipse folder,see the picture below.

2. Open eclipse.ini in Notepad or any other text-editor application, Find the line -Xmx256m (or -Xmx1024m). Now change the default value 256m (or 1024m) to 512m. You also need to give the exact java installed version (1.6 or 1.7 or other).

Like This:

-Xmx512m
-Dosgi.requiredJavaVersion=1.6

OR

-Xmx512m
-Dosgi.requiredJavaVersion=1.7

OR

-Xmx512m
-Dosgi.requiredJavaVersion=1.8

Then it works well for me.

Try to add

-vm
D:\Java\jdk1.6.0_29\bin\javaw.exe

FYI: Refer sunblog

For others who might have problems with Java 7, as per Eclipse Wiki - eclipse.ini vm_value (windows example)

This might not work on all systems. If you encounter "Java was started but returned exit code=1" error while starting the eclipse, modify the -vm argument to point to jvm.dll

e.g.

-vm
C:\Program Files\Java\jre7\bin\client\jvm.dll

Also note that

The -vm option must occur before the -vmargs option, since everything after -vmargs is passed directly to the JVM

I know this is pretty old now but I have just had the same issue and the problem was I was allocating to much memory to eclipse that it could not get hold of. So open eclipse.ini and lower the amount of memory that is being allocated to -Xmx XXMaxPermSize I changed mine to -Xmx512m and XXMaxPermSize256m

I removed eclipse.ini. I encountered this issue and removing the ini file solved it.

1. Open the eclipse.ini file from your eclipse folder.

2. It has some of add on configuration . Find the line –launcher.XXMaxPermSize. Now remove the the default value 256m and save it.

1. Open folder with Eclipse.exe and find eclipse.ini file

2. Replace -vmargs by your current real path of javaw.exe: *-vm “c:\Program Files\Java\jdk1.7.0_07\bin\javaw.exe”*

   -startup
   plugins/org.eclipse.equinox.launcher_1.3.0.v20120522-1813.jar
   --launcher.library
   plugins/org.eclipse.equinox.launcher.win32.win32.x86_1.1.200.v20120522-1813
   -product
   com.android.ide.eclipse.adt.package.product
   --launcher.XXMaxPermSize
   256M
   -showsplash
   com.android.ide.eclipse.adt.package.product
   --launcher.XXMaxPermSize
   256m
   --launcher.defaultAction
   openFile
   **-vm “c:\Program Files\Java\jdk1.7.0_07\bin\javaw.exe”**
   -Dosgi.requiredJavaVersion=1.6
   -Xms40m
   -Xmx768m
   -Declipse.buildId=v21.1.0-569685


You can also solve this issue by removing the value "256m" under the line "-launcher.XXMaxPermSize”.

I found a very easy solution for this. Just delete eclipse.ini file, but backup first. I had this same problem many times and finally I deleted this and I no more have the problem.

It also increased loading time. Now my Eclipse starts faster than earlier.

1. Open the ecplise.ini file which is located in the eclipse installation folder.

2. Find & Replace the line -vmargs with -vm D:\jdk1.6.0_23\bin\javaw.exe OR just remove the line -vmargs and save it . Now the problem is getting solved

In STS.conf file you need to check two important things to avoid create/allocate jvm issue

1. Give the exact jdk install location:

--vm C:\Program Files\Java\jdk1.7.0_01\jre\bin\javaw.exe

2. You need to give the exact java installed version:

--Dosgi.requiredJavaVersion=1.7

3. Try to reduce the memory size:

--XX:MaxPermSize=256m

After trying the above solution of reducing the memory, Eclipse starts working but hangs every time while loading the plugins from the work-space specially at org.eclipse.debug.core.

I found the solution here, Eclipse hangs at Splash Screen, and want share it. Hopefully it can help others as well.

Make sure eclipse.ini do not have multiple entry and used vm entry before vmargs:

-vm
  D:/java/jdk1.8.0_65/bin/javaw.exe
-vmargs
-Dosgi.requiredJavaVersion=1.8
-Dosgi.instance.area.default=@
-XX:+UseG1GC
-XX:+UseStringDeduplication
-Dosgi.requiredJavaVersion=1.8
-Xms256m
-Xmx1024m

Try this one:

-startup plugins/org.eclipse.equinox.launcher_1.1.1.R36x_v20101122_1400.jar
--launcher.library plugins/org.eclipse.equinox.launcher.win32.win32.x86_1.1.2.R36x_v20101222
-showsplash org.eclipse.platform
--launcher.XXMaxPermSize 256m
--launcher.defaultAction openFile
-vm F:\Program Files\jdk1.6\bin\javaw.exe
-vmargs
-Xms512m
-Xmx512m
-XX:+UseParallelGC
-XX:PermSize=256M
-XX:MaxPermSize=512M

Quick fix:

Change -Xmx1024m to -Xmx512m in eclipse.ini (file located at the same level where eclipse.exe is present). And it will work like a charm.

The simple way to fix this problem is just to delete or rename your eclipse.ini file. Try it first. If this method does not resolve your problem, try the solutions described below.

Other ways to fix it:

Solution 1

Add a string into the eclipse.ini file which change a destination of the javaw.exe file. The main thing is that this string must be placed above the string "-vmargs"!

-vm
C:\Program Files\Java\jdk1.6.0_22\bin\javaw.exe

Solution 2

Remove the value of –launcher.XXMaxPermSize, like 256m.

Solution 3

Remove or decrease the values of Xms and Xmx:

-Xms384m
-Xmx384m

This may work:

Open eclipse.ini file and paste below lines at the end of the lines.

-vmargs
-Xms40m
-Xmx512m
-XX:MaxPermSize=256m

After adding -vm in eclipse.ini as shown below worked for me. Add it before -vmargs do not remove it

-vm
C:\apps\Java\jdk1.8.0_92\bin\javaw.exe
-vmargs

There was a jdk update which was causing this issue.

The proper solution to your problem is to add the -vm line pointing to jvm.dll file of your Java folder in ini fie.

-vm
C:\Program Files\Java\jre1.8.0_202\bin\server\jvm.dll
/*there is no dquote for path, and path points to right java version folder mentioned in ini file*/

If the above fix is not fruitful, then do not attempt anything else. Most of the advice in this thread is misguided. Some of these hacks might work temporarily or on certain machine configurations, but the contents of eclipse.ini are not trivial nor arbitrary. For the authoritative reference, see this [wiki page]: that explains the contents of the file. Also note the See Also links at the bottom of that page for more details about things like heap size, etc. DO NOT delete eclipse.ini, EVER. It is also inadvisable to remove the -vm or Xmx options. If you do, you're asking for trouble.

Here are references from the wiki page pertaining to your problem:

This worked for me:

I closed all the other memory intensive applications on my Windows 7 machine. And I tried to open Eclipse, and, voila, it worked.

Some time it's not your eclipse.ini; it's your JDK which is crashed. You can check it by writing following command in a command prompt:

c:\> java -version

If this command shows the following error:

Error occurred during initialization of VM

java/lang/NoClassDefFoundError: java/lang/Object

Then first uninstall JDK and reinstall it.

Eclipse will be in action again ;) As today I have got the same problem, and the above is suggested by Itachi Uchiha.

Faced the issue when my Eclipse proton could not start. Got error "Failed to create the Java virtual machine"

Added below to the eclipse.ini file

-vm
C:\Program Files\Java\jdk-10.0.1\bin\javaw.exe

You need to add javaw.exe full path with forward slash i.e. / instead \ to eclipse.ini even you are on Windows. Like below:

-vm
C:/Program Files/Java/jdk-14/bin/javaw.exe

Also the above lines must be placed before -vmargs.

Adding this fixed the issue for me:

-vm

D:\Java\jdk1.6.0_29\bin\javaw.exe

Reduce param size upto -256
