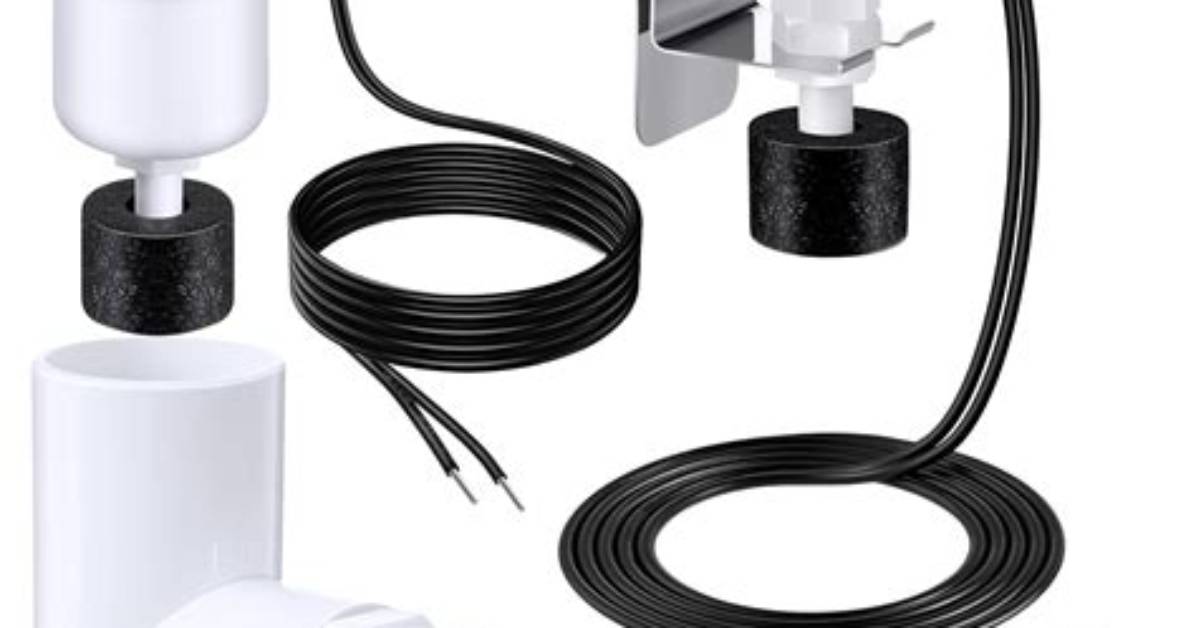

Float Switch for Hvac

An HVAC wet switch/float switch, also known as a condensate overflow switch, serves to prevent this pan from overflowing if the AC drain stops working properly. The switch is activated when the level of the water in the pan comes above a certain point, causing the switch mechanism to trip/float to rise.

Do I need a float switch on my AC?

If your AC unit doesn’t have a float switch, the chances that you will experience water damage in your home are pretty high. Water damage can be serious, ruining your home and furnishing. The safety switch will turn your AC unit off in time to prevent an overflow and leakage, even when you are not home.

How much does it cost to install a float switch?

What is the cost of a float switch? Float switches are inexpensive to add to your HVAC system. The part itself typically costs less than $50, and your HVAC professional should be able to install it in under a half hour. Your HVAC professional can also determine whether your unit could benefit from a condensate pump.

Where is the float switch on my HVAC?

The float switch location depends on the orientation of your HVAC equipment. For horizontal units the float switch will be located in the secondary drain pan. For horizontal units without a secondary drain pan or vertical units, the float switch will be on the drainpipe.

Why does my AC float switch keeps tripping?

If your AC float switch keeps tripping, you probably have an AC drain pan that’s full. You’ll need to empty the water, and with the right tools, you can do this yourself. You should also consider why the pan became full in the first place.

How much does it cost to replace AC float switch?

AC Float Switch Installation Cost

An ac float switch only costs about $50 for the part. Pure says, that your ac repair contractor should be able to install it in less than an hour. With labor prices ranging from $70 to $130 an hour, you can expect to pay anywhere from $120 to $180 for ac float switch installation.

How long does a float switch last?

These old float switches didn’t have many operations and needed to be replaced about every 3 years or so, making them expensive to keep up with. However, new float switch manufacturers are producing water level control technology that is getting rid of old float switches for good.

Where are float switches used?

A float switch is a type of contact liquid level sensor that uses a float to operate a switch. Float switches are commonly used to control other devices such as alarms and pumps when a liquid level rises or falls to a specific point.

How does a float switch operate?

How does a float switch work? A float switch moves with the liquid level up and down. An internal mechanical switch opens or closes an electrical circuit with gravity. Therefore, the electrical circuit can turn on/off equipment, like a water pump.
