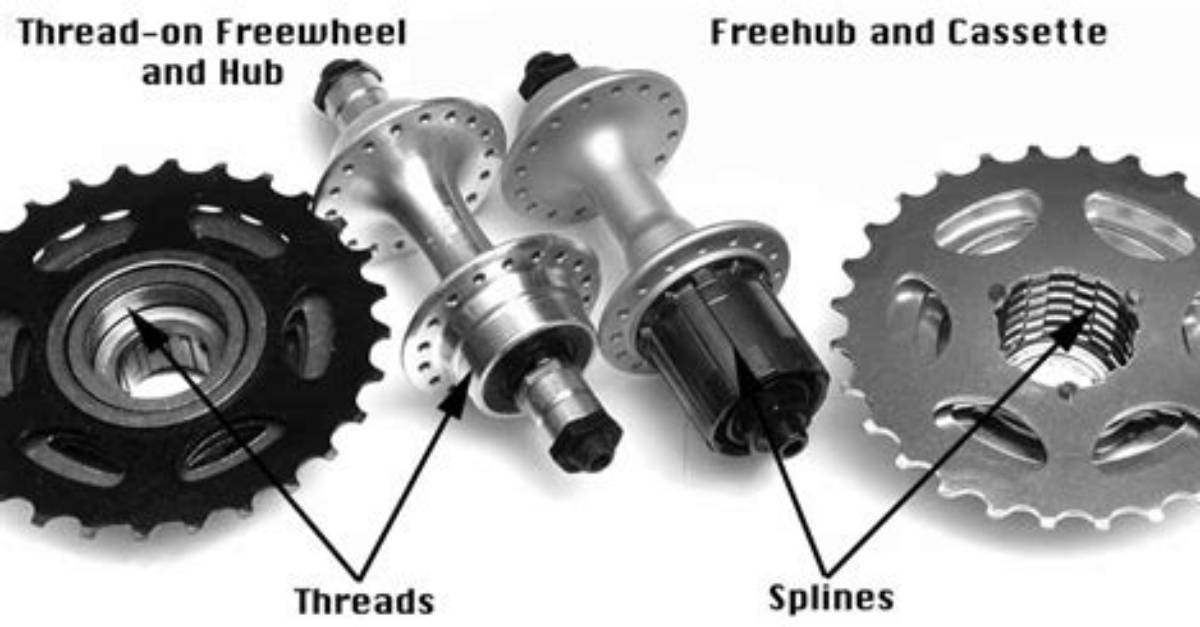

Freehub vs Freewheel

Find the tool fitting on the sprocket set. Spin the sprockets backwards. If the fittings spin with the cogs, it is a cassette system with a freehub. If the tool fittings do not spin with the cogs, it is a threaded freewheel system.

Can I replace a freewheel with a freehub?

The wheel will come with the freehub. You’ll want to get a new chain at the same time and you’ll probably have to adjust the rear shifting, but normally nothing other than that. Make sure they have the same axle spacing.

What is the purpose of a freehub?

The freehub is the ratcheting mechanism attached to the rear hub of most modern derailleur bike hubs. The freehub uses a splined cylinder to hold the cassette cogs. Inside the freehub mechanism will be bearings and a clutch system, usually ratcheting teeth and pawls. The cassette cogs have no moving parts.

Are all Shimano Freehubs the same?

Most Shimano Freehub bodies are interchangeable.

Can you put a cassette on a freewheel hub?

You cannot convert a freewheel hub to cassette. You need a new rear hub. What he said. You’ll have to either get a whole new rear wheel or buy a rear hub and spokes and have them re-laced to your current rim.

Is there a 10 speed freewheel?

Hi-Tensile Steel sprockets gold anodised alloy spacers. Designed initially for E-bikes this frewheel may give your old bike that needed upgrade. Shimano and SRAM index compatible.

Are all freewheels the same size?

Reversing the rear wheel allows switching between Fixed/Free drivetrain, between two different size gears, or both. Generally, the freewheel is selected to be the same size, or slightly larger (more teeth) than the fixed cog.

Can a freewheel be replaced with a cassette?

Cassette hubs cannot accept freewheels; nor can freewheel hubs accept a cassette. The freehub body of a cassette hub is shaped specifically for a cassette. Meanwhile, freewheels and freewheel hubs operate with a threaded system. Thus, it’s impossible to mount a freewheel on a cassette hub.

How do I convert my freewheel to single speed?

The better way to convert a cassette Freehub ® is to remove the 7-, 8- or 9-speed cassette and replace it with a single sprocket. You will also need a bunch of spacer washers to hold the single sprocket in place. You can often get a suitable number of spacers by taking apart a couple of discarded, worn-out cassettes.

Are freewheel and cassette interchangeable?

They are attached using two different mechanisms – the Cassette, and the Freewheel. Although they do look very similar and have the same function when fitted properly, they operate differently and are not interchangeable.

How long should a freehub last?

I had them last anywhere between two weeks and three months (170 miles per week). Eventually I gave up and bought a Shimano R500 rear wheel for £50 and six months later the freehub is still fine. If you’re degreasing the cassette mounted to the bike, you’re probably washing the grease out of the free hub.

What is a freewheel hub?

A freehub is a type of bicycle hub that incorporates a ratcheting mechanism. A set of sprockets (called a “cassette”) is mounted onto a splined shaft of the freehub to engage the chain.

Can you use any freehub?

freehub standard accepts only XD cassettes. There are 10, 11 and 12 speed cassette versions (same XD freehub body). Many wheel and hub manufacturers make XD compatible freehub bodies that can be screwed onto the hub instead of the old Shimano compatible freehub.

Are Mavic Freehubs interchangeable?

Both Aksiums and Ksyriums use the Mavic FTSL hub system, where there’s a CD10 freehub for Campag and a M10 for Shimano, which are interchangeable.

Can I put a 12 speed cassette on 11 speed hub?

Yes you can run a 9/10/11 & 12 speed cassette on a shimano free hub, a Sunrace 12 speed will fit.
