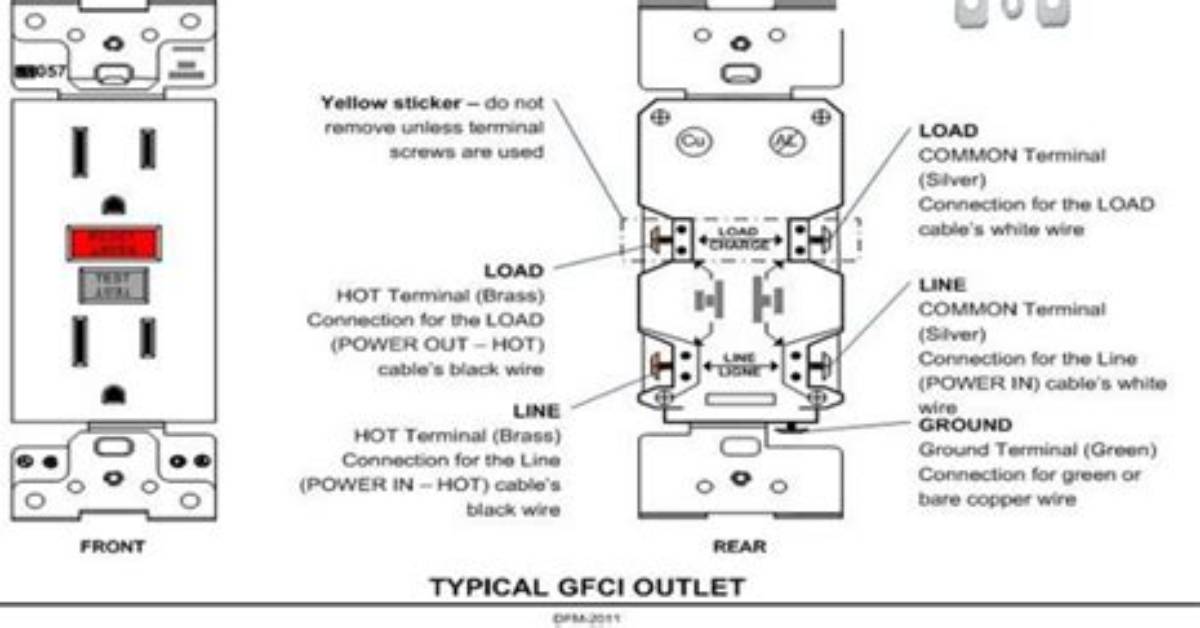

Gfci Line or Load

If you miswired the GFCI it may not prevent personal injury or death due to a ground fault (electrical shock). If you mistakenly connect the LINE wires to the LOAD terminals, the GFCI will not reset and will not provide power to either the GFCI receptacle face or any receptacles fed from the GFCI.

Which is load and which is line?

The line side of an outlet is where you connect the incoming source power. The load side is where the power leaves the device (or electrical box) and travels down the circuit.

How do I know if a line is load or wire?

Load Wire – Generally connected to the top half of your switch. If the wire is coming from the top of the switch box, it is likely your load wire. Line Wire – Generally connected to the bottom half of your switch. In some cases, line wires are marked with “line”, “pwr”, or a lightning bolt symbol.

What happens if I mix up line and load?

Here’s what happens when somebody wires a GFCI receptacle with the load and line wires reversed: The GFCI will work, in the sense that you can plug in a hair dryer and the hair dryer will blow hot air. But when you push the little “test monthly” button, and the “reset” button pops out, the receptacle stays live.

Is load wire white or black?

So, what color is the load wire? Load wires are mostly black, but red can also be used as a secondary load wire. They are also connected to the switch’s top half, while line wires are connected to the switch’s bottom half.

Can you have 2 GFCI outlets on the same circuit?

When you need to wire multiple GFCI outlets such as in a kitchen or bathroom you have a couple of options. To save money, you can put in a single GFCI and then wire additional standard outlets to the “LOAD” output from the single GFCI. This provides the same protection as having a GFCI at each location.

Will GFCI work if hot and neutral are reversed?

It means that the neutral GFCI wire is connected to the terminal that normally holds the hot wire. On the other hand, the hot wire is connected to the neutral terminal. In a GFCI, the reversed polarity will prevent the current from flowing. This is dangerous because electricity is always flowing out of the outlet.

Can I replace a 2 prong outlet with a GFCI?

Upgrade Two-Prong Outlets to GFCI

And this is the only type of three-prong outlet you can replace two-prong outlets with without breaking NEC guidelines. This is because GFCI outlets can still protect against electrical shock, even without the grounding component.

Can you run GFCI in series?

Can GFCI outlets be wired in series? It’s always preferable to wire the GFCI in parallel to get the best operation of protection from ground faults. But we can also wire them in series.

Which is hot line or load?

Line is the wire that goes from a source to a switch. It’s upstream of the switched device. Line is very hot. The wire from the switch to the device is called load.

Which wire is hot when both are black?

The black wire is the “hot” wire, it carries the electricity from the breaker panel into the switch or light source. The white wire is the “neutral” wire, it takes any unused electricity and current and sends it back to the breaker panel.
