How Big Does a Dovetail Jig Need to Be?

How big does a dovetail jig need to be?

Introduction Your new dovetail jig will cut Full Through Dovetails and three varieties of Half Blind Dovetails (flush half blind, offset half blind and rabbeted half blind). (Figure 1) It will also cut Box ( also known as “finger”) Joints. It will accommodate stock from 1/2″ to 11⁄ 8″ thick and up to 11″ wide.

What kind of jig bit do I Need?

Included with your jig are a 1/2″-14º dovetail bit for half blind dovetails, 1/2″- 8º dovetail bit and 5/16″ straight bit for full through dovetail joints. Also included is a 1/2″-8mm reducer for your 1/2″ router collet.

How to insert drawer parts in dovetail jig?

Make sure the board lies at 90° to the front of the jig, then loosen the three screws in the adjustable stop (the left one, Part 11, see (Fig. 6), and slide it snug against the board. Tighten the three screws. Repeat this process for the right side of the jig. Insert the Drawer Parts

How big is a piece of plywood for dovetails?

The larger piece is 12″ long and 9″ deep. The strips are 1-1/2″ wide and two of those are 9″ long. The third is the same length as that diameter of my router base: First step is to glue and screw the plywood base to a piece of 3/4″ thick plywood that is 16″ long and 3″ deep.

What kind of jig to use for Dovetail?

Porter-Cable’s jig has onboard help for setting bit depth and quick-reference shortcuts for setting up and adjusting the jig. Because each jig is designed to work with specific geometries of dovetail joints, it’s best to use bits recommended by the jig’s manufacturer.

Included with your jig are a 1/2″-14º dovetail bit for half blind dovetails, 1/2″- 8º dovetail bit and 5/16″ straight bit for full through dovetail joints. Also included is a 1/2″-8mm reducer for your 1/2″ router collet.

How tall to cut a half blind dovetail jig?

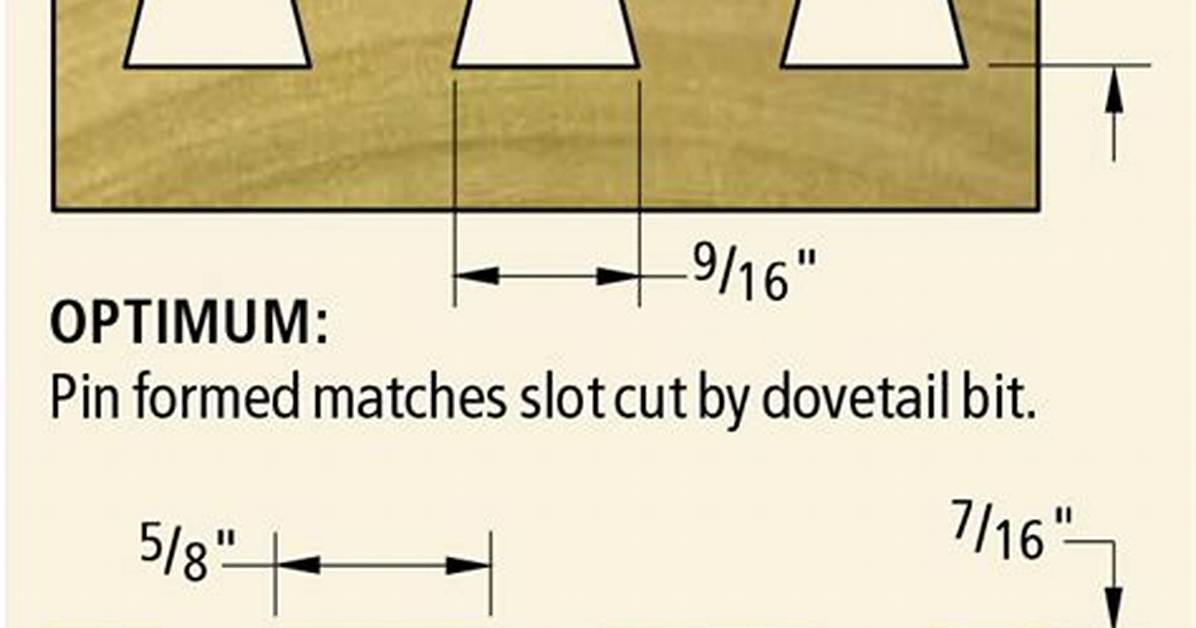

For half blind dovetail joints you will be using the 1/2″ x 14º dovetail bit. Depth of cut will be 9/16″ from the base of your router. Included on the half blind template is a gauge for setting this height (Fig. 3). Adjusting for joint tightness will be covered later in these instructions.

The larger piece is 12″ long and 9″ deep. The strips are 1-1/2″ wide and two of those are 9″ long. The third is the same length as that diameter of my router base: First step is to glue and screw the plywood base to a piece of 3/4″ thick plywood that is 16″ long and 3″ deep.
