How Do Ax, Ah, Al Map onto Eax?
My Understanding of X86 Registers Say That Each Register Can Be Accessed by the Entire 32 Bit Code and It Is Broken into Multiple Accessible Registers. in This...
My understanding of x86 registers say that each register can be accessed by the entire 32 bit code and it is broken into multiple accessible registers.
In this example EAX being a 32 bit register, if we call AX it should return the first 16 bits, and if we call AH or AL it should return the next 8 bits after the 16 bits and AL should return the last 8 bits.
So my question, because I don't truly believe is this is how it operates. If we store the 32 bit value aka EAX storing:
0000 0100 0000 1000 0110 0000 0000 0111
So if we access AX it should return
0000 0100 0000 1000
if we read AH it should return
0000 0100
and when we read AL it should return
0000 0111
Is this correct? and if it is what value does AH truly hold?
6 Answers
No, that's not quite right.
EAX is the full 32-bit value
AX is the lower 16-bits
AL is the lower 8 bits
AH is the bits 8 through 15 (zero-based)

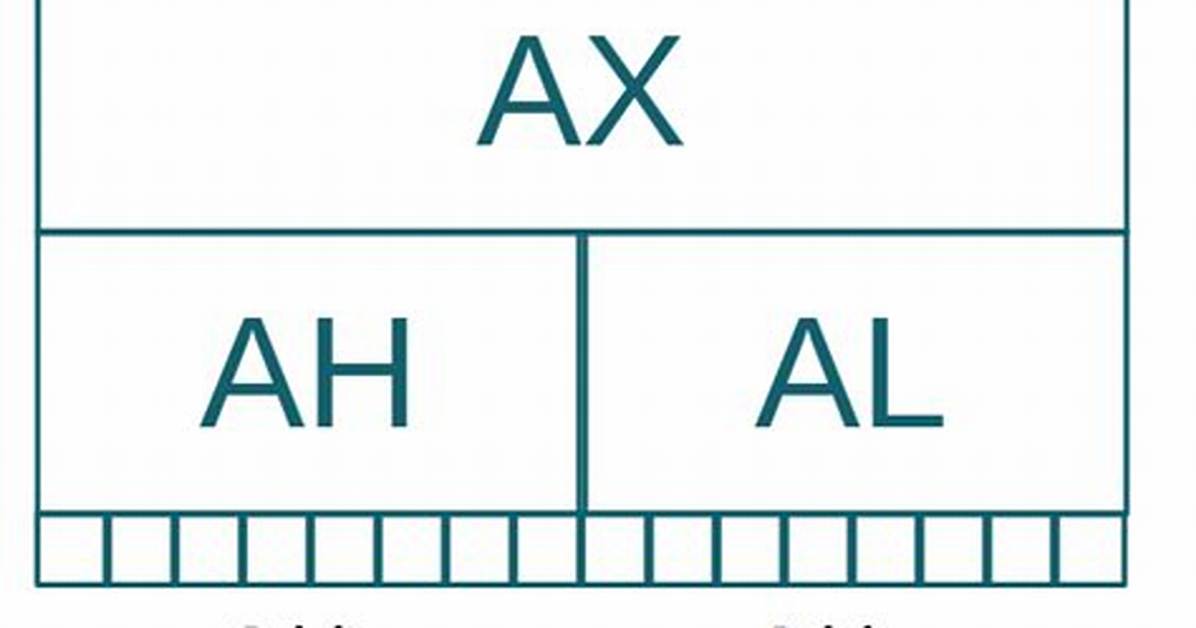

So AX is composed of AH:AL halves, and is itself the low half of EAX. (The upper half of EAX isn't directly accessible as a 16-bit register; you can shift or rotate EAX if you want to get at it.)
For completeness, in addition to the above, which was based on a 32-bit CPU, 64-bit Intel/AMD CPUs have
RAX, which hold a 64-bit value, and where EAX is mapped to the lower 32 bits.
All of this also applies to EBX/RBX, ECX/RCX, and EDX/RDX. The other registers like EDI/RDI have a DI low 16-bit partial register, but no high-8 part, and the low-8 DIL is only accessible in 64-bit mode: Assembly registers in 64-bit architecture
Writing AL, AH, or AX leaves other bytes unmodified in the full AX/EAX/RAX, for historical reasons. i.e. it has to merge a new AL into the full RAX, for example. (In 32 or 64-bit code, prefer a movzx eax, byte [mem] or movzx eax, word [mem] load if you don't specifically want this merging: Why doesn't GCC use partial registers?)
Writing EAX zero-extends into RAX. (Why do x86-64 instructions on 32-bit registers zero the upper part of the full 64-bit register?)
Again, all of this applies to every register, not just RAX. e.g. writing DI or DIL merges into the old RDI, writing EDI zero-extends and overwrites the full RDI. Same for R10B or R10W writes merging, writing R10D leaving R10 independent of the old R10 value.
AX is the 16 lower bits of EAX. AH is the 8 high bits of AX (i.e. the bits 8-15 of EAX) and AL is the least significant byte (bits 0-7) of EAX as well as AX.
Example (Hexadecimal digits):
EAX: 12 34 56 78
AX: 56 78
AH: 56
AL: 78
| 0000 0001 0010 0011 0100 0101 0110 0111 | ------> EAX
| 0100 0101 0110 0111 | ------> AX
| 0110 0111 | ------> AL
| 0100 0101 | ------> AH
no your ans is Wrong
Selection of Al and Ah is from AX not from EAX
e.g
EAX=0000 0000 0000 0000 0000 0000 0000 0111
So if we call AX it should return
0000 0000 0000 0111
if we call AH it should return
0000 0000
and when we call AL it should return
0000 0111
Example number 2
EAX: 22 33 55 77
AX: 55 77
AH: 55
AL: 77
example 3
EAX: 1111 0000 0000 0000 0000 0000 0000 0111
AX= 0000 0000 0000 0111
AH= 0000 0000
AL= 0000 0111
No -- AL is the 8 least significant bits of AX. AX is the 16 least significant bits of EAX.
Perhaps it's easiest to deal with if we start with 04030201h in eax. In this case, AX will contain 0201h, AH wil contain 02h and AL will contain 01h.
The below snippet examines EAX using GDB.
(gdb) info register eax
eax 0xaa55 43605
(gdb) info register ax
ax 0xaa55 -21931
(gdb) info register ah
ah 0xaa -86
(gdb) info register al
al 0x55 85
- EAX - Full 32 bit value
- AX - lower 16 bit value
- AH - Bits from 8 to 15
- AL - lower 8 bits of EAX/AX
