How Do I Make a Static Nat in Fortigate?

.

Similarly, how do you create a NAT rule in FortiGate?

How to create an Outbound Static NAT rule:

1. Navigate to: Policy & Objects > Objects > IP Pools.
2. Click the “Create New” button.
3. Name = Anything you want, something descriptive.
4. Comments = Optional.
5. Type = Select “One-to-One”
6. External IP Range = Just enter one public IP address.
7. ARP Reply = Uncheck this (defaults to checked)

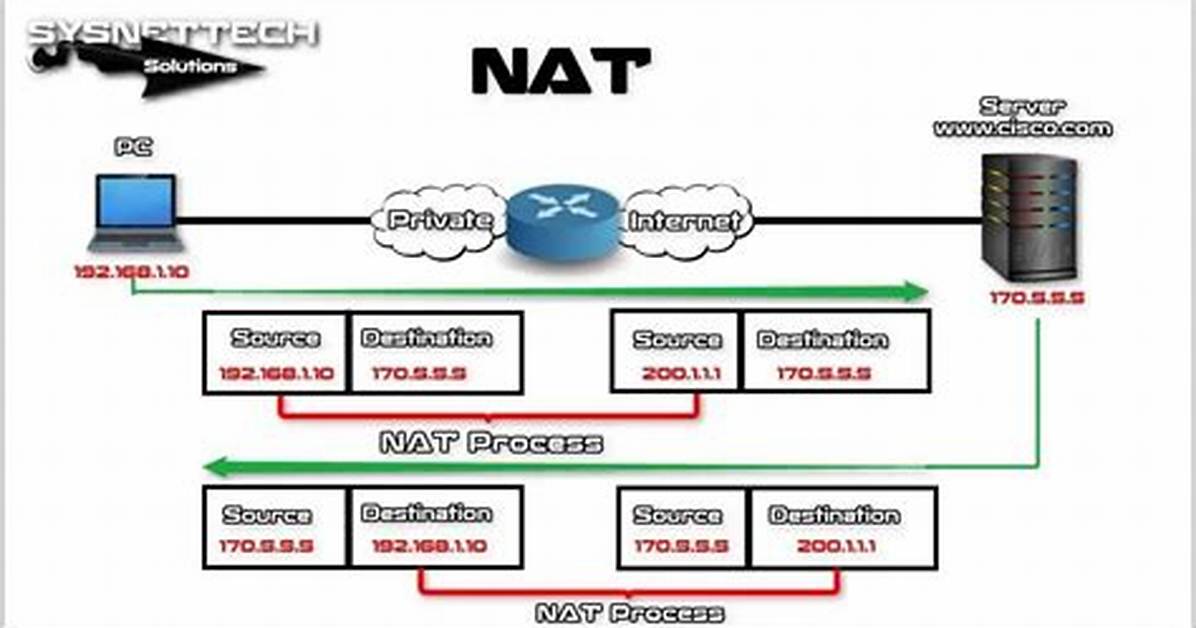

Additionally, what is IP pool in FortiGate? IP Pools. IP Pools are a mechanism that allow sessions leaving the FortiGate Firewall to use NAT. These assigned addresses will be used instead of the IP address assigned to that FortiGate interface.

Likewise, how do I set a static outbound Nat?

Setting Static Port using Hybrid Outbound NAT

1. Navigate to Firewall > NAT on the Outbound tab.
2. Select Hybrid Outbound NAT.
3. Click Save.
4. Click Add with the up arrow to add a rule to the top of the list.
5. Set Interface to WAN.
6. Set the Protocol to match the desired traffic (e.g. UDP)

How do I port forward FortiGate?

Add Virtual IPs to enable port forwarding

1. In 5.0, Go to Firewall Objects > Virtual IPs > Virtual IPs.
2. Select Create New.
3. Add a name for the virtual IP.
4. Select the External Interface.
5. Set the External IP Address.
6. Set Mapped IP Address to the internal IP address of the Windows Server PC.
7. Select Port Forwarding.
