How Do Pneumatically Actuated Valves Work?
Although Pneumatic Machines Come in Various Forms, Most Valves Work the Same Way. Pressurized Air Is Held in a Reservoir or Diaphragm. as Air Is Fed into the...

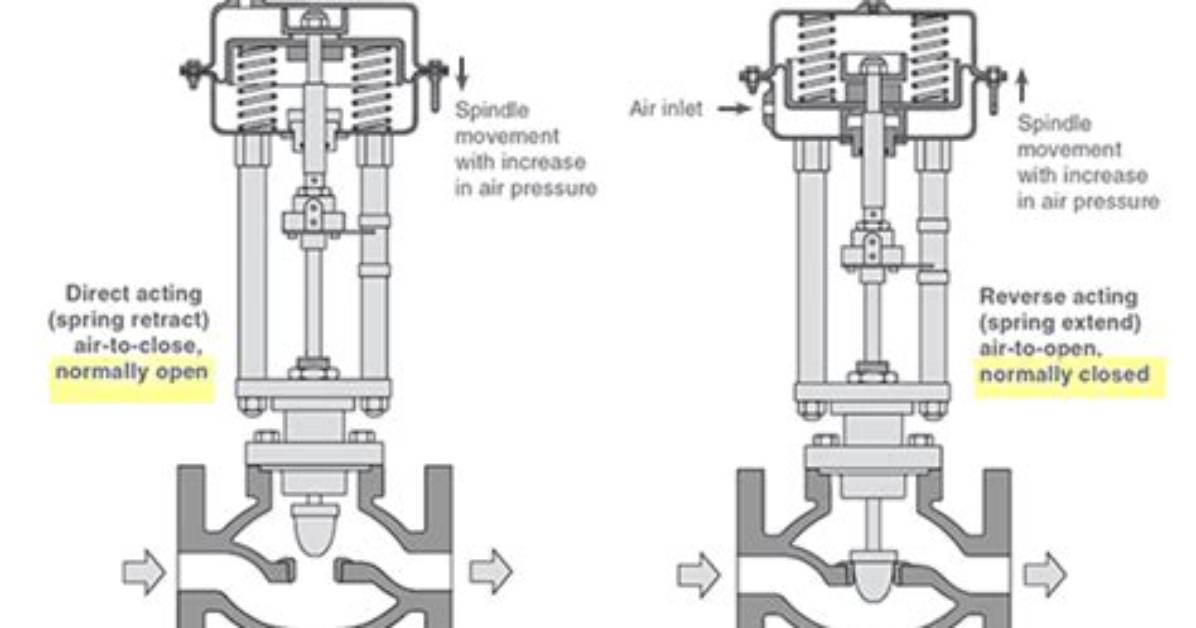

Although pneumatic machines come in various forms, most valves work the same way. Pressurized air is held in a reservoir or diaphragm. As air is fed into the reservoir through a compressor, it pushes against the walls of the area. ... This, in turn, causes the valve stem to press downwards and close the valve.
How does an air actuated valve work?
A pneumatic actuator is one component of a control valve package. ... When the actuator receives a pneumatic signal from the pilot, the pressure pushes up on the actuator diaphragm. This opens the valve and allows process fluid or gas through the valve orifice (in a pressure-open/fail-close set up).
How does an electric actuated valve work?
Torque is the rotational force an actuator generates to close a rotational valve. Electric actuators can generate this force by transmitting it to the output shaft and then the valve stem. When pressure is applied to the valve stem, the valve's orifice opens or closes.
