How Do You Check a Diode Polarity with a Multimeter?
Sometimes It's Easiest to Just Use a Multimeter Totest for Polarity. Turn the Multimeter to Thediode Setting (Usually Indicated by a Diode Symbol), and Touch...
.
Similarly, how do you check polarity with a multimeter?
The only way to check the polarity of an outlet with adigital multimeter.
- Plug the black lead into the middle input at the bottom of themultimeter and plug the red lead into the right input.
- Insert one of the leads into the longer vertical opening in theoutlet.
Secondly, how do you measure the value of a diode? How to Test a Diode using Analog Multimeter
- Keep the multimeter selector switch in low resistancevalue.
- Connect the diode in the forward-biased condition by connectingthe positive terminal to anode and negative to the cathode.
- If the meter indicates a low resistance value, then it saysthat the diode is healthy.
Similarly, how can you tell if a diode is bad?
A diode is reverse-biased when thepositive (red) test lead is on the cathode and the negative (black)test lead is on the anode. The reverse-biased resistance of a gooddiode displays OL on a multimeter. The diode is badif readings are the same in both directions.

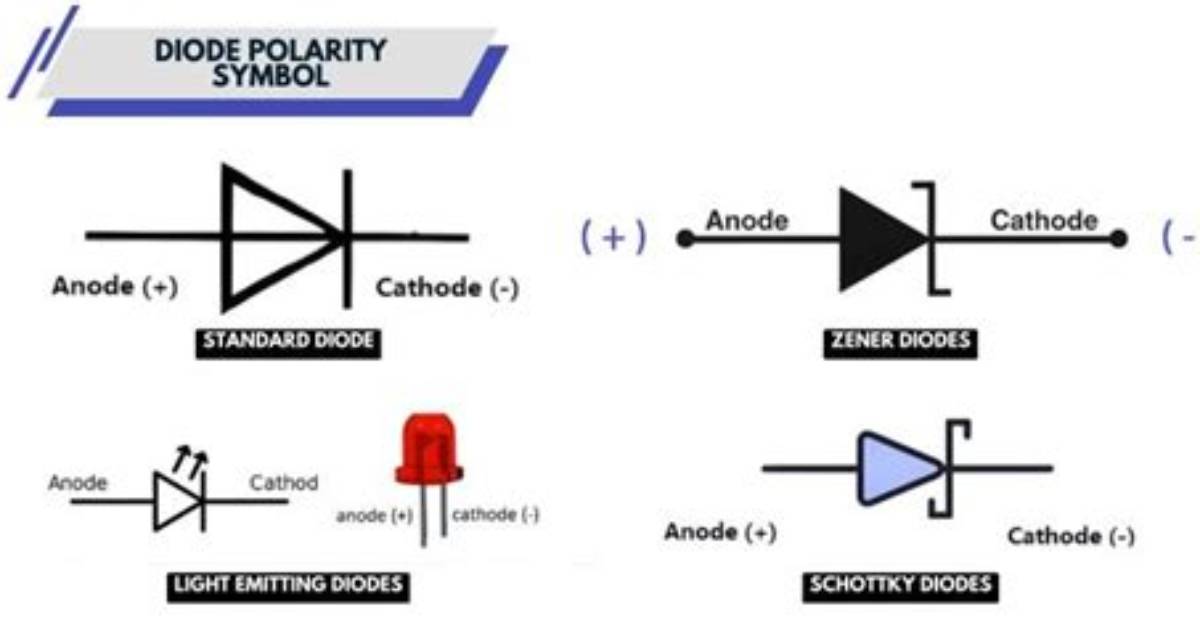

How do you check the polarity of a diode?
Sometimes it's easiest to just use a multimeter totest for polarity. Turn the multimeter to thediode setting (usually indicated by a diode symbol),and touch each probe to one of the LED terminals. If the LED lightsup, the positive probe is touching the anode, and thenegative probe is touching the cathode.
