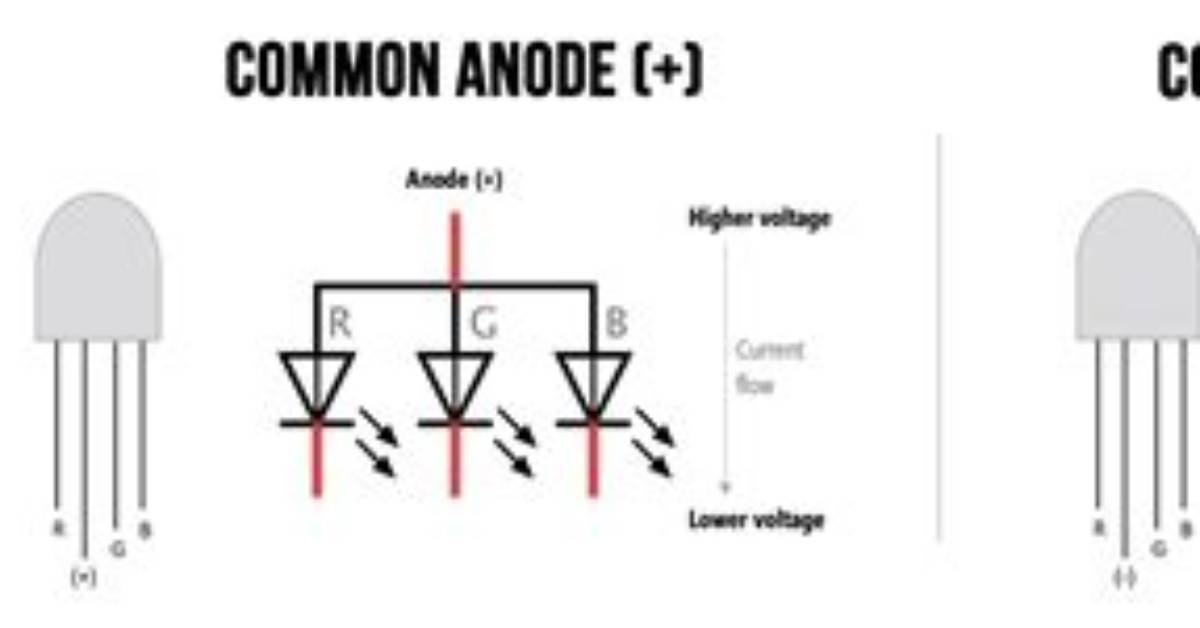

As their name suggests, the common cathode has all the cathodes of the LEDs in a 7-segment connected together and the common anode has all the anodes of the LEDs in a 7-segment connected together. In the common cathode display, all the cathode connections of the LED segments are connected together to ‘logic 0’ / GND.
How do you use the common cathode 7 segment display?
- For common cathode make GND pin ground. …
- Apply +5 volts to dp(decimal/display point) pin in series to a 510 ohm-1k ohm resistor to limit the current. …
- Now if your small circle led lit’s it means that your seven segment is properly working and now you can use it.
How do you connect common anode 7 segment display to Arduino?
Arduino 7 segment project circuit Seven segment display pins connection with arduino are given below. Pin 13 of arduino is connected to pin ‘a’ of 7 segment display. Pin 12 of arduino is connected to pin ‘b’ of 7 segment display. Pin 11 of arduino is connected to pin ‘c’ of 7 segment display.
