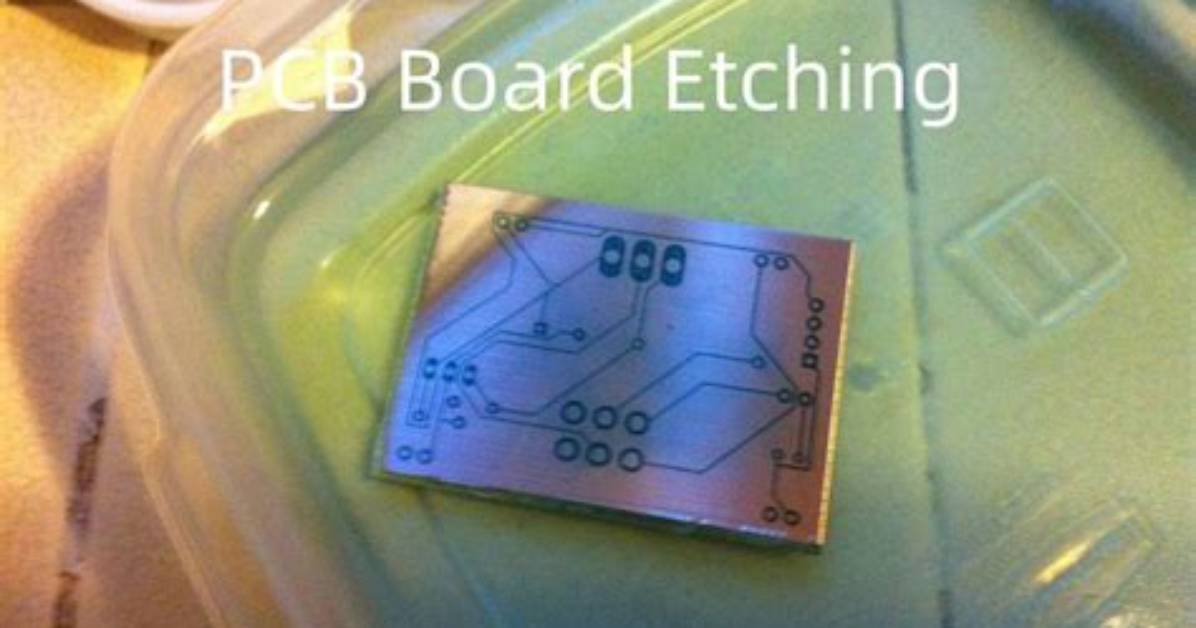

How Do You Etch Printed Circuit Boards?
Dip the Pcb into the Etching Solution (Ferric Chloride Solution, Fecl3) for Approximately 30 Mins. the Fecl3 Reacts with the Unmasked Copper and Removes the...
.
Similarly one may ask, which chemical is used for PCB etching?
Currently used for print circuit board etching of solvents are iron (Ferric Chloride), cupric chloride (Cupric Chloride), alkaline ammonia (Alkaline Ammonia), sulfuric acid hydrogen peroxide (Sulfuric Acid + Hydrogen Peroxide) etching fluid, ammonium persulfate, sulfuric acid – chromic acid etching solution.
what is etching in PCB process? Etching is a "subtractive" method used for the production of printed circuit boards: acid is used to remove unwanted copper from a prefabricated laminate. You can etch a PCB by yourself, in a lab or even at home, through a simple and inexpensive production process.
Similarly, it is asked, how do PCB boards work?
A printed circuit board, or PCB, is used to mechanically support and electrically connect electronic components using conductive pathways, tracks or signal traces etched from copper sheets laminated onto a non-conductive substrate. The IPC preferred term for populated boards is CCA, circuit card assembly.
What acid is used to etch metal?
Etch the design For example, steel can be etched with hydrochloric acid, nitric acid, or sulfuric acid. Copper can be etched with ferric chloride mixed in water to form weak hydrochloric acid. Soft aluminum can be etched with ferric chloride, using acrylic polymer paint as a resist.
