How Do You Ground a Coaxial Cable
Grounding the Coaxial Was the Hard Part. Grounding the Mast Is Easy. Simply Attach an 8 or 10 Awg Copper Wire to the Mast Using a Mast Ground Clamp and Run the...

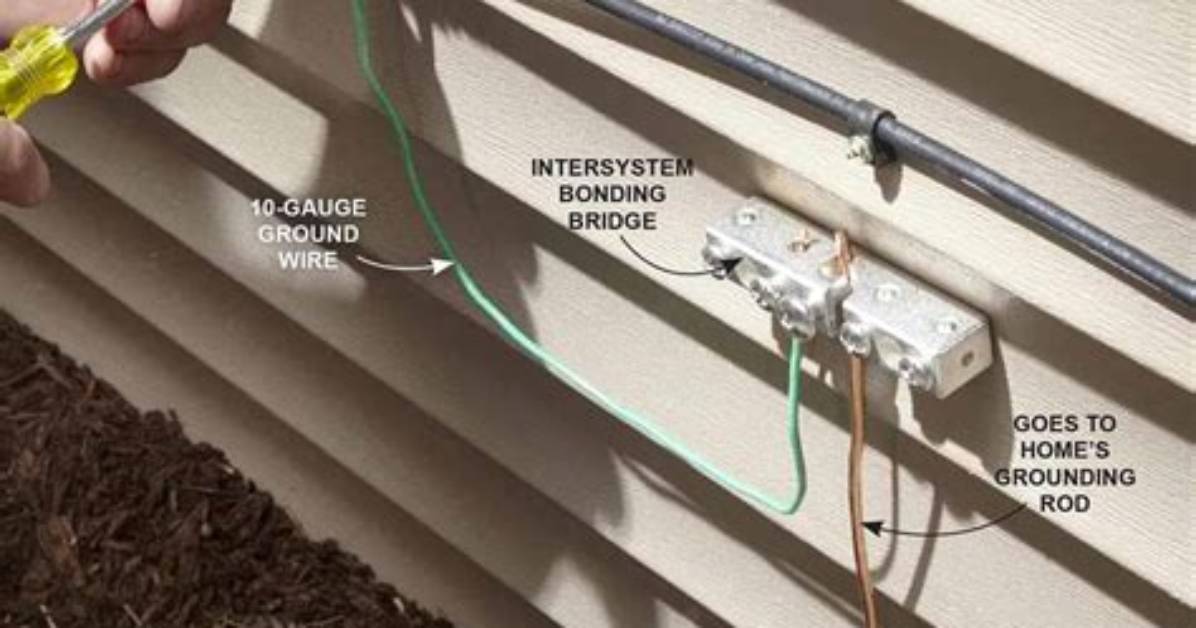

Grounding the coaxial was the hard part. Grounding the mast is easy. Simply attach an 8 or 10 AWG copper wire to the mast using a mast ground clamp and run the other end of the copper wire to the house ground. It’s recommended to use a separate clamp, and not the one used to ground the coaxial to the house ground.
Do coax cables need to be grounded?
The National Electrical Code (NEC) requires that the antenna mast and the coaxial cable be bonded to the home’s ground electrode system (GES), which is usually the ground rod installed at the power meter and breaker box. … A separate ground rod is not required, and is not recommended.
How do you ground a coaxial outlet?
Attach the grounding block to your home, somewhere close to where the coaxial cable comes in. A grounding block will have at least two screw holes; drill holes for each, then secure the block to the wall with the included screws.
