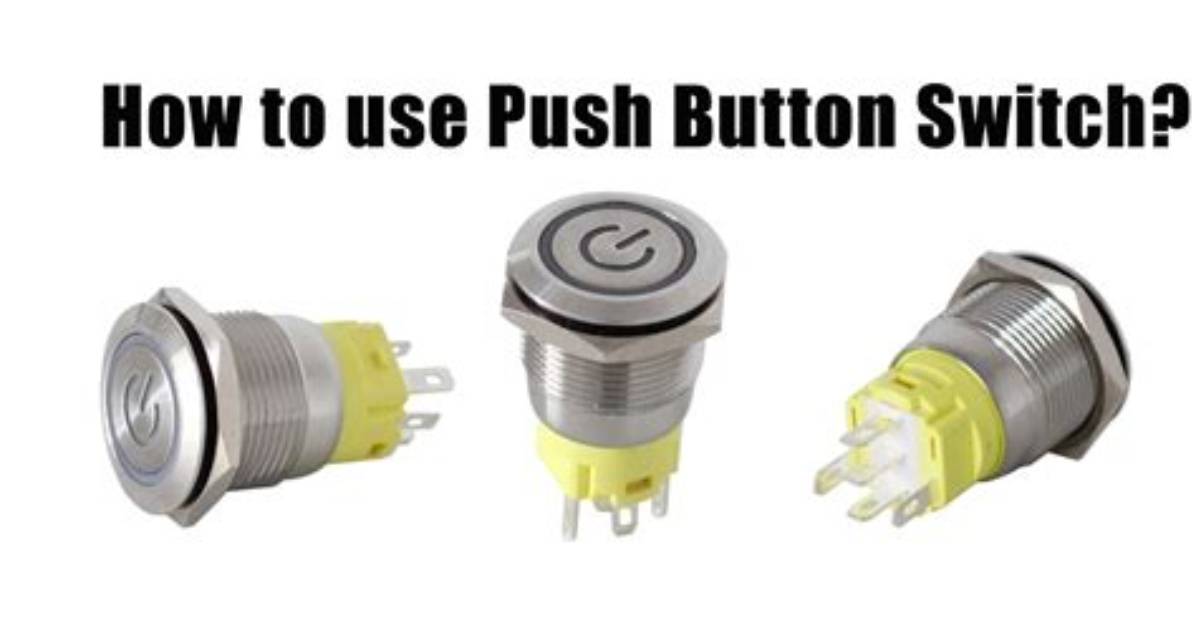

How Do You Use a Push Button in a Circuit?
A Push Button Is a Type of Switch Which Shorts or Completes the Circuit When It Is Pressed. It Is Used in Many Circuits to Trigger the Systems. a Spring Is...
.
Likewise, people ask, how does a push button switch work?
A push button switch is a small, sealed mechanism that completes an electric circuit when you press on it. When it's on, a small metal spring inside makes contact with two wires, allowing electricity to flow. When it's off, the spring retracts, contact is interrupted, and current won't flow.
Also, what is a momentary switch? A type of switch usually in the form of a push button that is only engaged while it is being depressed, as opposed to a typical “on/off” switch, which latches in its set position. Momentary switches may be normally open or normally closed. A normally open switch doesn't make contact until and unless it is held down.
Likewise, what is the function of push button?
A push to make switch allows electricity to flow between its two contacts when held in. When the button is released, the circuit is broken. This type of switch is also known as a Normally Open (NO) Switch. (Examples: doorbell, computer case power switch, calculator buttons, individual keys on a keyboard)
How do you wire a push button ignition switch?
To accomplish this, splice or double a 12-gauge jumper wire off of the red wire at the ignition switch connection and take that jumper wire over to one side of the push button switch. Next, take the red, brown, and pink wires and connect them to our supplied ignition switch just as the instructions dictate.
How do you test a push button switch?
- Verify ohm meter operation. Turn on the multimeter.
- Insert the leads into the meter Touch the probe tips together to verify that ohm meter is functioning.
- Connect the red lead to one of the terminals on the switch.
- Put the switch into the 'OFF' position.
- Operate the switch on and off for a few more times.
