How Do You Use a Rectangular Array?
To Create a Rectangular Array Click Home Tab Modify Panel Rectangular Array. Find. Select the Objects to Array and Press Enter. a Default Rectangular Array Is...
- Click Home tab Modify panel Rectangular Array. Find.
- Select the objects to array and press Enter. A default rectangular array is displayed.
- On the array preview, drag the grips to adjust the spacing and number of rows and columns. You can also modify values on the Array context ribbon.
.
Besides, what is rectangular array?
A rectangular array is an arrangement of objects into rows and columns. Each row has the same number of objects, and each column has the same number of objects. A multiplication number model can be written to describe a rectangular array. The first factor is the number of rows in the array.
Similarly, which three types of arrays can be used in Autocad? Note: With a path array, you also need a line, polyline, 3D polyline, spline, helix, arc, circle, or ellipse to serve as the path.
There are three types of arrays:
- Rectangular.
- Path.
- Polar.
Likewise, people ask, how do I create an array in Autocad?
Create a Polar Array
- Click Home tab Modify panel Polar Array. Find.
- Select the objects to array.
- Specify a center point. A preview array is displayed.
- Enter i (Items) and enter the number of objects to array.
- Enter a (Angle) and enter the angle to fill. You can also drag the arrow grips to adjust the fill angle.
What is array model?

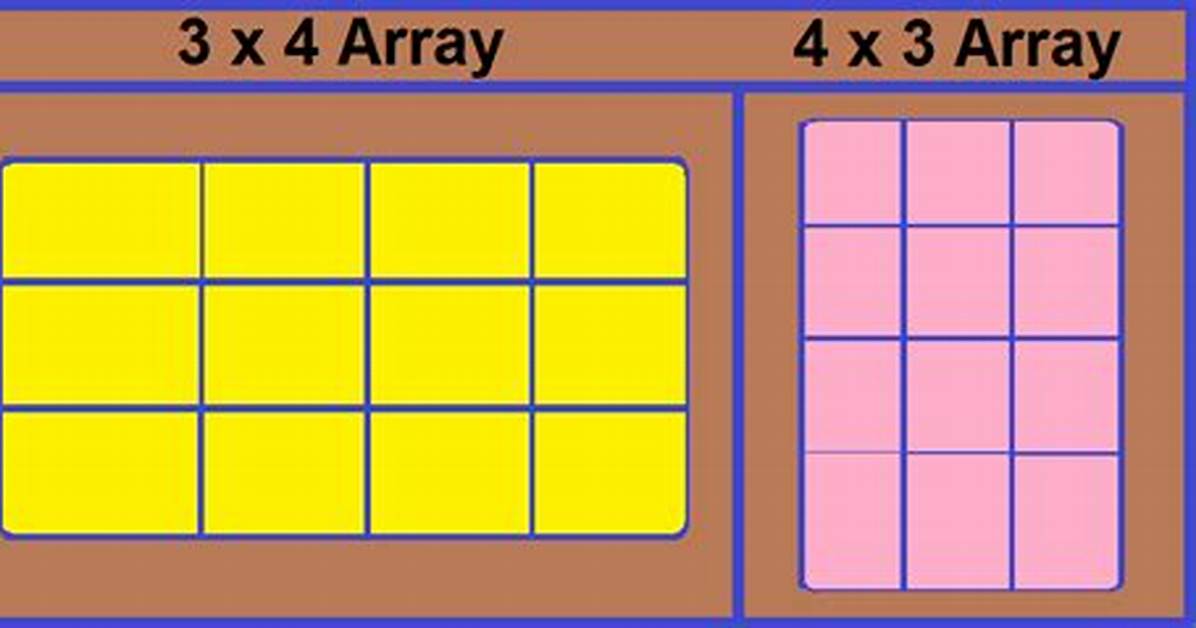

An arrangement of objects, pictures, or numbers in columns and rows is called an array. Arrays are useful representations of multiplication concepts. This array has 4 rows and 3 columns. It can also be described as a 4 by 3 array. When equal groups are arranged in equal rows, an array is formed.
