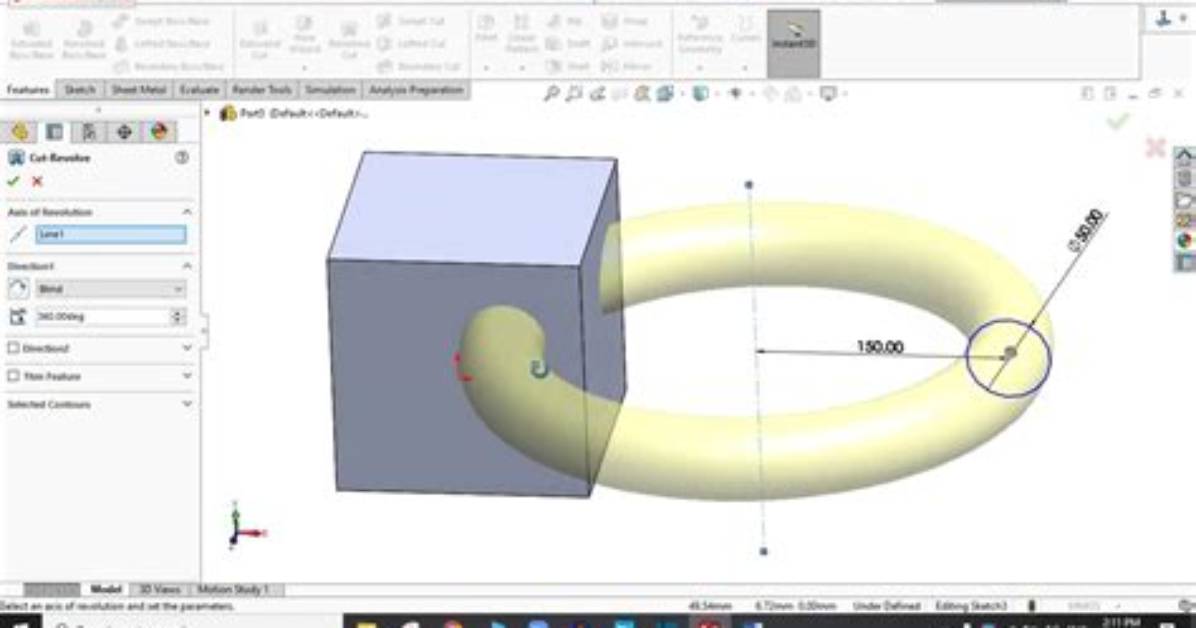

How Do You Use the Revolve Base in Solidworks

Create a new 2D sketch.Create all solid sketch geometry on one side of the axis.Choose Revolve Boss/Base from the features menu.Pick the axis you wish to use for the revolve.Specify direction and angle.Accept the Feature.

What is revolved base SolidWorks?

Revolves add or remove material by revolving one or more profiles around a centerline. You can create revolved boss/bases, revolved cuts, or revolved surfaces. To create a revolve feature, use the following guidelines: … The sketch for a solid revolved feature can contain multiple intersecting profiles.

How do you use revolve Extrude in SolidWorks?

1. Open a sketch on a face or plane, and sketch a profile of the cut. …
2. Click Extruded Cut or Revolved Cut (Features toolbar), or click Insert > Assembly Feature > Cut , then Extrude or Revolve.
3. Set the options as needed in the Extrude or Revolve PropertyManager.
