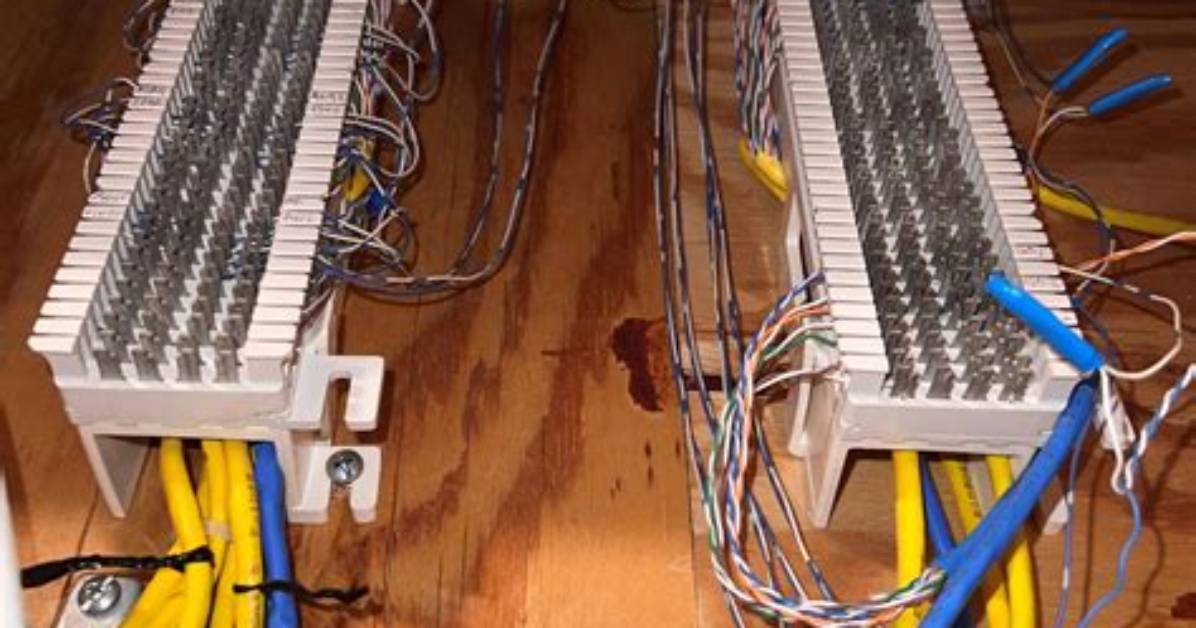

How Do You Wire a Phone Punch Down Block?
On a 66 Block Incoming Wires Are Typically Punched Down on the Left Side of the Block Starting from the Top. Each Wire Is Punched Down to the First Pin in a...
.
Beside this, how does a punch block work?
These slots, usually cut crosswise (not lengthwise) across an insulating plastic bar, contain two sharp metal blades which cut through the wire's insulation as it is punched down. These blades hold the wire in position and make the electrical contact with the wire as well.
Secondly, how is a 66 block wired? On a 66 block incoming wires are typically punched down on the left side of the block starting from the top. Each wire is punched down to the first pin in a row with one wire per row. The order of the pairs is blue, orange, green and brown with the white wire from the pair being punched down on top.
Also asked, why is it called a 110 block?
A 110 block is a type of punch block used to terminate runs of on-premises wiring in a structured cabling system. The designation 110 is also used to describe a type of insulation displacement contact (IDC) connector used to terminate twisted pair cables, which uses a punch-down tool similar to the older 66 block.
What is a Krone block?
Krone LSA-PLUS (or simply krone) is an insulation-displacement connector for telecommunications. It is a proprietary European alternative to 110 block.
