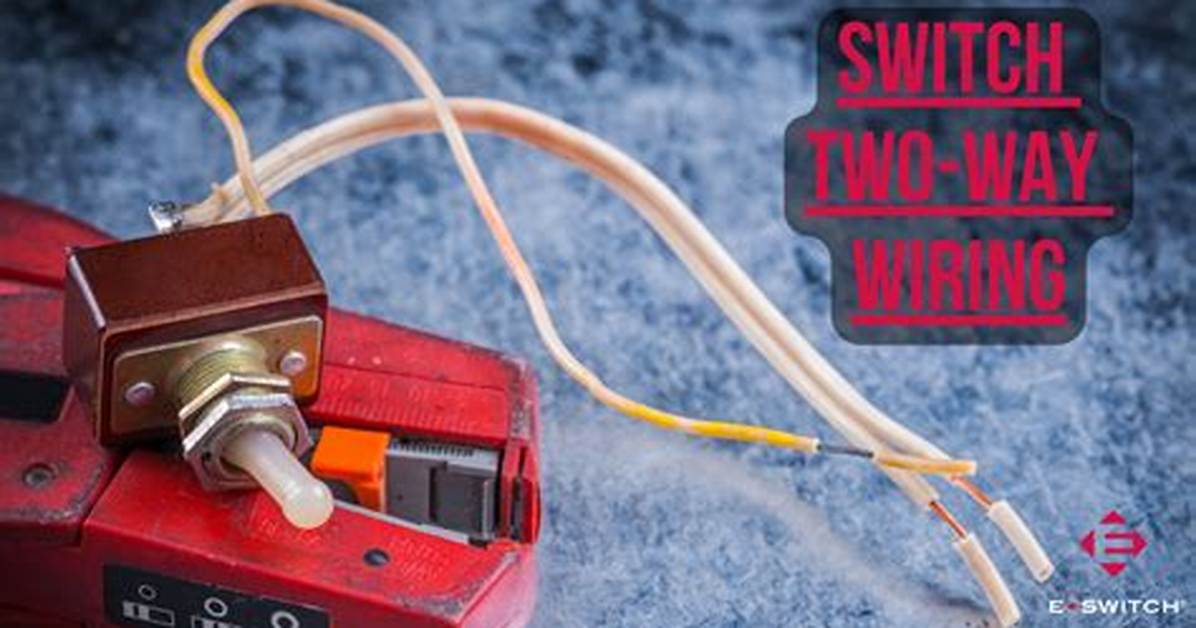

How Do You Wire a Toggle Light Switch?
How Do I Wire the Toggle Switch? the Easiest Way Is Connect the Hot Wire from Your Light to the Switch. off the Other Side of the Switch, Attach the Wire...
.
Moreover, how do you wire a light switch to a power switch?
Power source directly to fixture - When you want to add a switch to a light that is "hot" at the fixture, you can run a new 3 wire cable from the fixture to a box containing the new switch. The black caries the "hot" to the switch, the red carries the hot back to the fixture. Both will be "hot" when the switch is on.
Furthermore, how does a toggle switch work? In a toggle switch you have a lever that you turn to one side or to the other to make the current flow to one side or to other, or to not flow at all. There are several types of toggle switches. These are characterized by the pole and the throw. A pole represents a contact.
Similarly, it is asked, how do you wire a toggle switch on a boat?
Attach one wire of the in-line fuse holder to the middle post of the toggle switch. Connect the wire from the lights to the remaining wire of the in-line fuse holder. Attach the power supply wire to the circuit breaker panel of your boat. Open the in-line fuse holder and insert a fuse of the correct size.
How do you wire a single pole switch?
Switch Loop
- In the switch box, attach the ground wire to the ground screw on the switch. Attach the black wire to one of the screws or into one of the holes on the switch.
- In the switched device (light) box, connect the grounds together. Connect the power to the white wire in the cable going to the switch box.
