How Does a 3 Phase Power Work

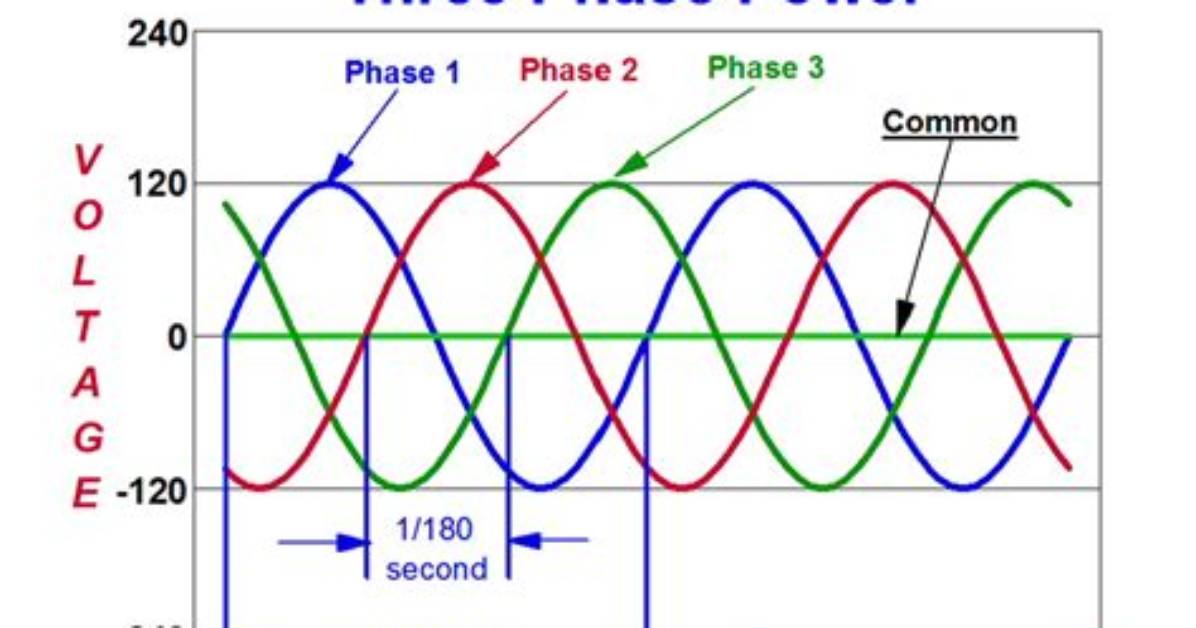

Three-phase power provides three alternating currents, with three separate electric services. Each leg of alternating current reaches a maximum voltage, only separated by 1/3 of the time in a full cycle. In other words, the power output of a three-phase power remains to be constant, and it never drops into zero.

How does a 3-phase power supply work?

Three-phase power provides three alternating currents, with three separate electric services. Each leg of alternating current reaches a maximum voltage, only separated by 1/3 of the time in a full cycle. In other words, the power output of a three-phase power remains to be constant, and it never drops into zero.

How does three-phase current flow?

Current flows from a three-phase generator on the left, represented as three Y-connected single-phase sources, via a transmission line into a symmetric Y-connected load on the right. The angular separation between the phases is 120°, or 2π/3 radians. …
