How Does a Bimetallic Overload Relay Work?
The Overload Relay Is Installed on Motor Control Circuit to Make a Contact in the Trip Circuit or Mechanically Operate the Trip Bar Thus Shutting Down the...
.
Thereof, what is bimetallic overload relay?

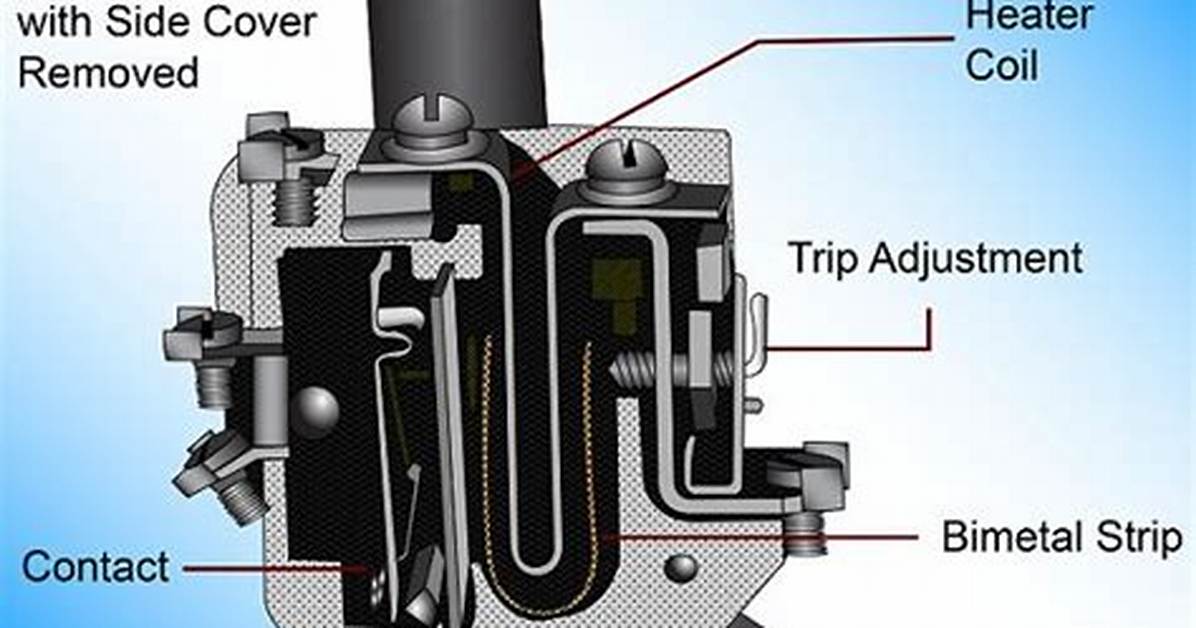

A bimetallic overload relay consists of a small heater element wired in series with the motor and a bimetal strip that can be used as a trip lever. The two metals have different thermal expansion characteristics, so the bimetal strip bends at a given rate when heated.
Additionally, what is bimetallic relay? Thermal overload relay or a bimetallic relay is a 3 phase motor protection relay which protect the motor during over current flow. This relay can in cress the life of a motor.
Likewise, people ask, how does overload relay work?
Overload relays protect a motor by sensing the current going to the motor. Many of these use small heaters, often bi-metallic elements that bend when warmed by current to the motor. When current is too high for too long, heaters open the relay contacts carrying current to the coil of the contactor.
What is an overload relay?
An overload relay is an electrical device used to protect an electric motor from overheating. So it is essential to have sufficient motor protection. For instance, an overload relay can explore without the tripping of a CB (circuit breaker).
