How Does a Cmm Work?

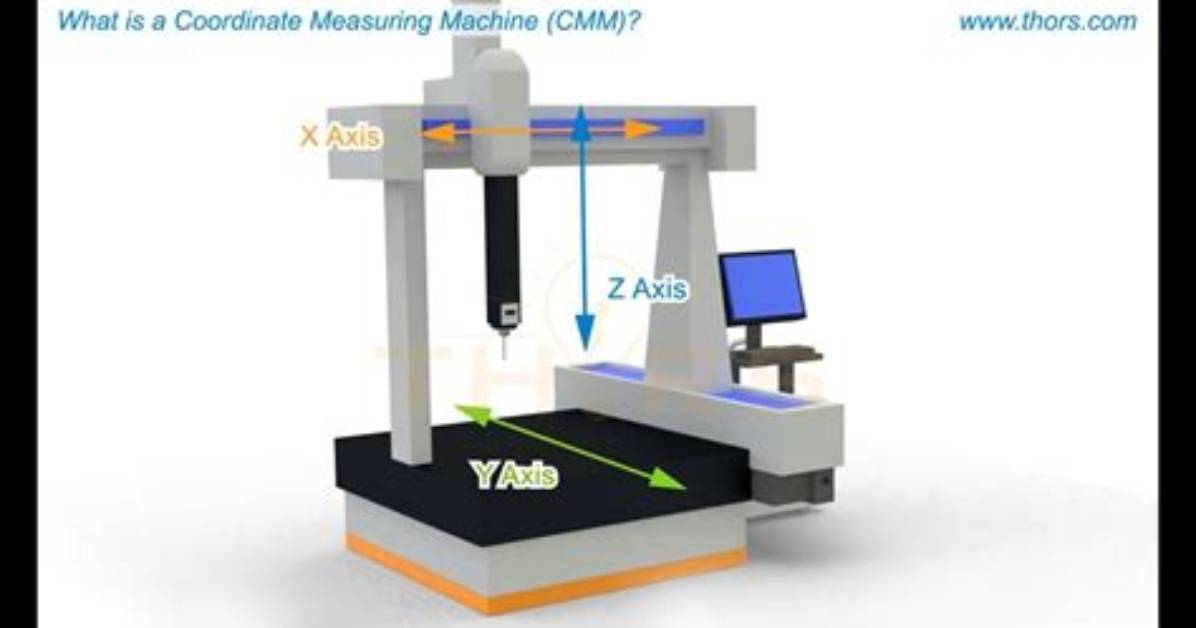

A Coordinate Measuring Machine (Cmm) Works in Much the Same Way as Your Finger When It Traces Map Coordinates; Its Three Axes Form the Machine's Coordinate...
.
People also ask, why do we use CMM?
A coordinate measuring machine (CMM) is a device used in the measurement of the physical geometrical characteristics of an object. A coordinate measuring machine (CMM) is also a device used in manufacturing and assembly processes to test a part or assembly against the design intent.
Likewise, what are the main uses of CMM in industry? Coordinate measuring machineat present is not only a kind of laboratory measurement instrument, but is widely used in machining and assembly workshop. In the automotive industry, the CMM is the necessary measuring tool of product quality assurance and quality control.
Also know, what is the accuracy of CMM?
| MODEL | SOFTWARE | ACCURACY |
|---|---|---|
| Brown & Sharpe 12.22.10 | PC-DMIS | 2.5+3.0L/1000 microns |
| Brown & Sharpe 7.10.7 | PC-DMIS | 1.9+4.0L/1000 microns |
| † Factory machine specification for accuracy: L = Length in mm of the feature to be checked Download CMM Linecard | ||
What are the 5 levels of CMM?
There are five levels of the CMM:
- Level 1 - Initial. Processes are usually ad hoc and the organization usually does not provide a stable environment.
- Level 2 - Repeatable. Software development successes are repeatable.
- Level 3 - Defined.
- Level 4 - Managed.
- Level 5 - Optimizing.
