How Does a Recirculation Door Work?
Electric blend and recirculation doors are used with (EATC) electronic automatic temperature control systems. Applying voltage to one wire and grounding the other moves the door in one direction. Reversing the polarity of these wires moves the door in the other direction.

.

Similarly, it is asked, what does a recirculation door do?

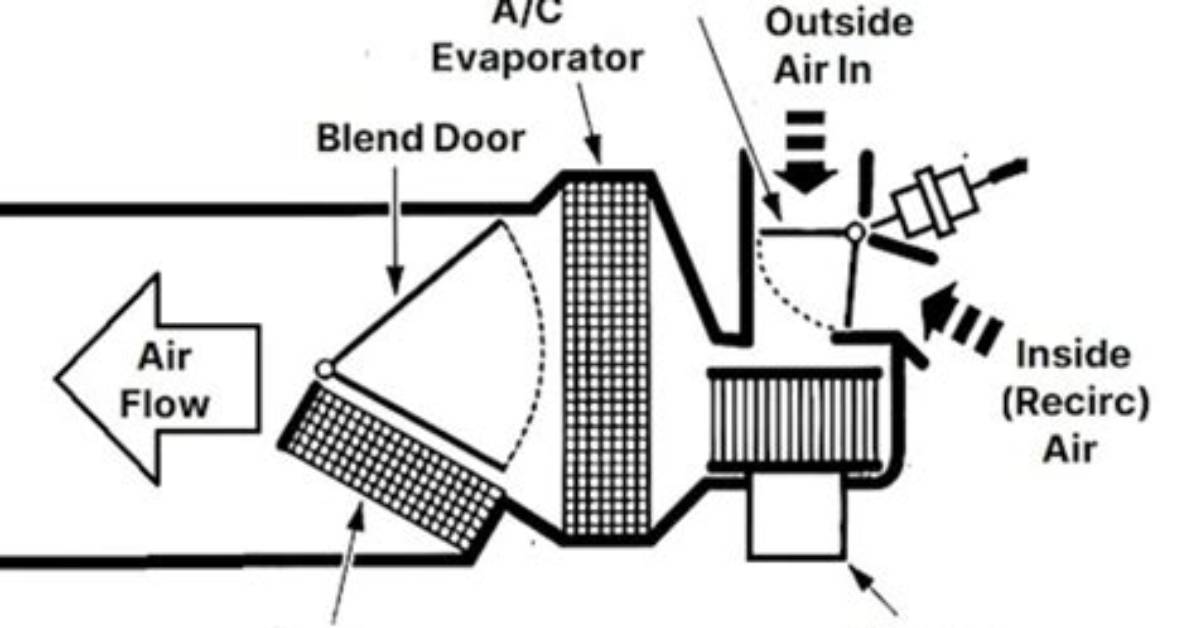

The recirculation door allows for air in the passenger cabin to be drawn into the HVAC system, cooled or heated, and then recirculated back into the cabin instead of bringing in outside air.

Beside above, when should you use recirculation in car? According to World Class Auto Repair, the best time to use this feature is when it's hot out and you have the A/C turned on. It recirculates the slightly cool air that comes out of the A/C when you first turn it on, instead of pulling the hot air in from outside. And the longer it's on, the cooler your car gets.

Besides, what is the purpose of the recirculation button?

Using the Recirculation button helps get your car as cool as possible when it's hot outside and you have the A/C on. It recirculates the kind-of-cool air that you get from the A/C when you first turn it on, and the longer it's on, the cooler you car gets until it's as cool as the system can possibly be.

Is it better to recirculating air conditioning?

A: Cars typically are more fuel efficient when the air conditioner is set to re-circulate interior air. This is because keeping the same air cool takes less energy than continuously cooling hot air from outside. Of course, turning off the air conditioner saves even more fuel.

Related Question Answers

What does a blend door actuator do?

The actuator is responsible for moving the air direction and temperature doors inside the heater plenum; their job is to manage mode settings like re-circulation modes, mid vent, defrost and fresh air, floor as well as temperature. Also, they control the cold and hot settings for left and right passenger sections.

What is air flap actuator?

Flap actuators. The air flows in an HVAC system through ducts or pipes; a flap is used to open or close, either fully or partially, certain portions of the duct in order to control which way the air goes. A flap actuator, also called a damper, is simply an electrical machine that moves the flap.
