How Does a Sling on a Trebuchet Work?
The Sling Lies on a Track at the Base of the Trebuchet. as the Arm of the Trebuchet Begins to Move, the Sling Drags the Ball Before Lifting It into the Air...
.
In this way, does a trebuchet need a sling?
Attached to the end of the swing arm is typically something like a sling to increase rotational velocity, but it isn't essential to trebuchet design. Potential energy is stored in the lever mechanism as the large counterweight is lifted.
Secondly, what is the best ratio for a trebuchet? General advice is that the optimal ratio is 133:1. A golf ball projectile (1.62 oz) should fire best with 13.46 lbs of counterweight – and a 14 lb bowling ball should have 1862 lbs pulling on the other side of the arm to reach maximum distance.
Furthermore, how does a trebuchet work?

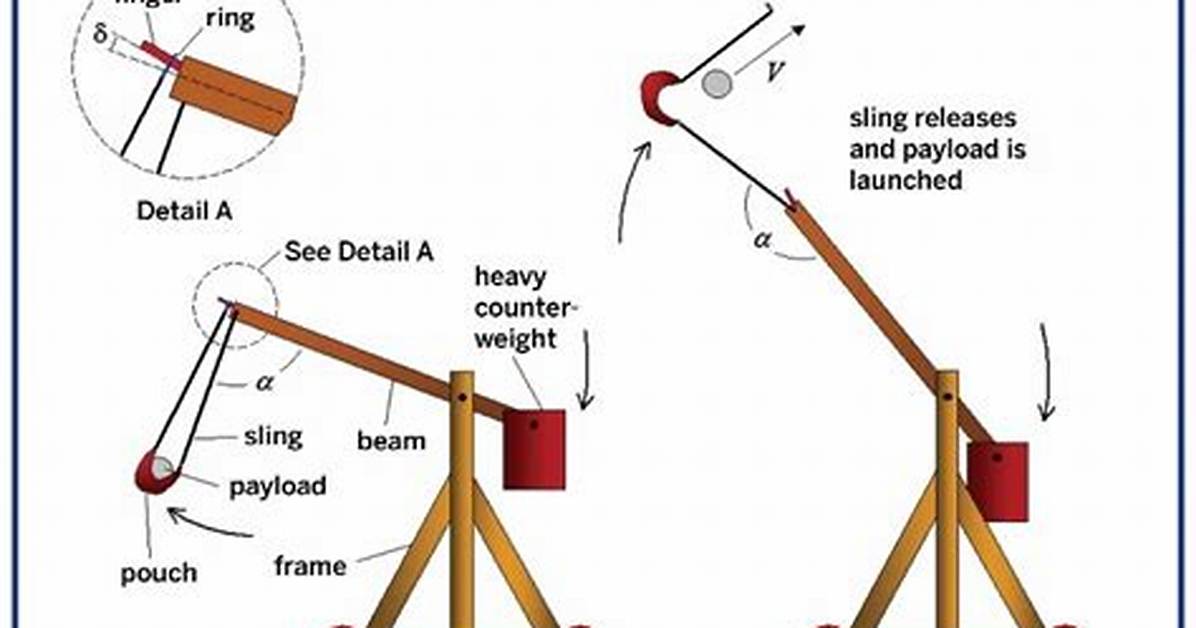

A trebuchet works by using the energy of a falling (and hinged) counterweight to launch a projectile (the payload), using mechanical advantage to achieve a high launch speed. As you can see, the counterweight pivots around a much shorter distance than the payload end.
How long should the sling be on a trebuchet?
The sling should be around the same length of as the long side of the arm. In this case of the diagram above, it should be 2m in length. But if you are using an under-powered counterweight, or your payload is too heavy, decrease the length of the sling to have better results, but it will decrease your maximum range.
