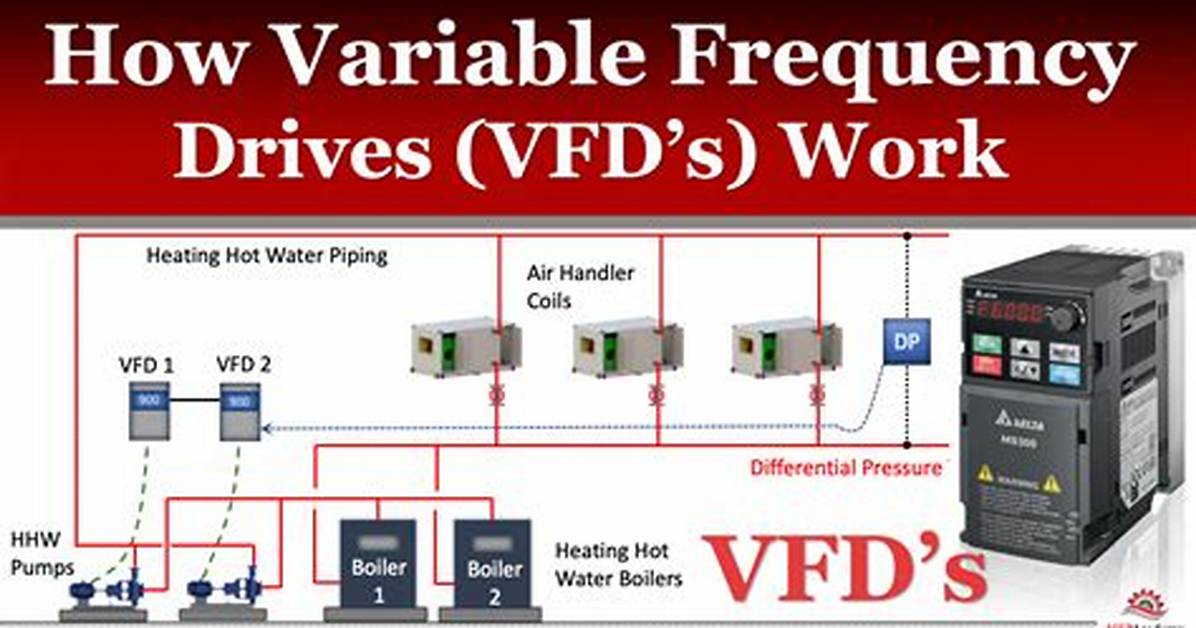

How Does a Vfd Work

These variable-frequency drives (VFDs) accurately control the speed of standard AC induction or synchronous motors. … VFDs manipulate the frequency of their output by rectifying an incoming AC current into DC, and then using voltage pulse-width modulation to recreate an AC current and voltage output waveform.

How do you select a VFD for a pump?

The most important consideration when choosing a Variable Frequency Drive (VFD) is to know the type of load that is being applied to the motor because it will determine the size and cost of the VFD. The VFD must have sufficient current capability so that the motor can produce the required torque for the load.

Why is VFD used?

The most common uses of a VFD are for control of fans, pumps and compressors, and these applications account for 75% of all drives operating globally. Soft starters and across-the-line contactors are other, less sophisticated types of motor controllers.
