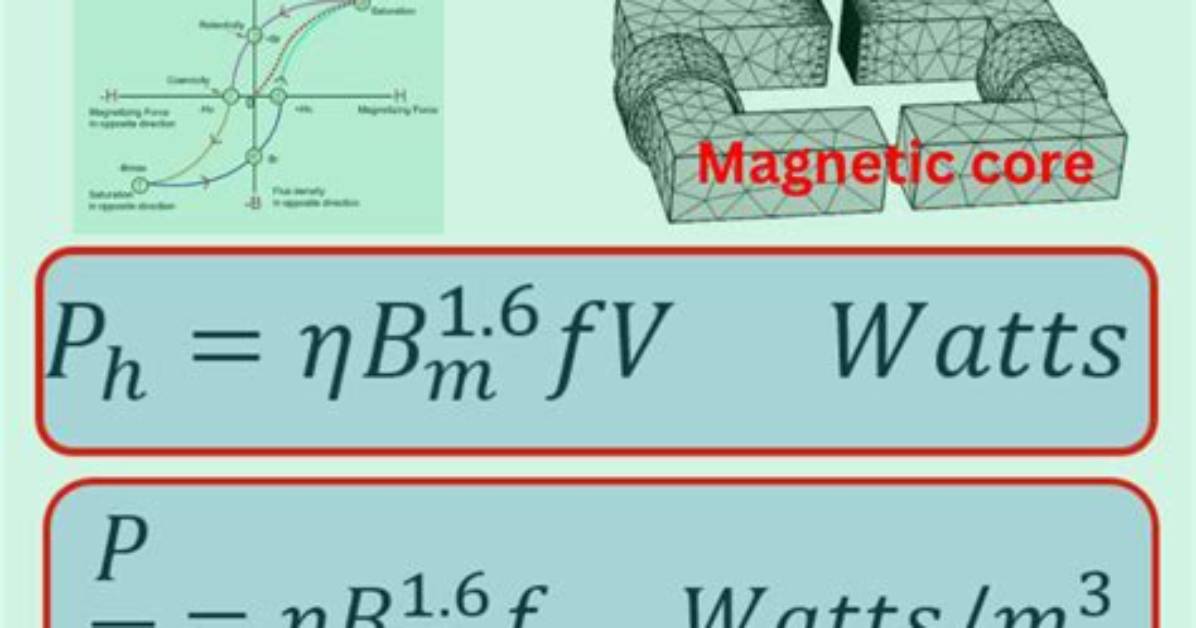

How Does Hysteresis Loss Depend on Frequency

Hysteresis losses will increase with frequency, and they are greatest in materials that have a high retentivity. These materials, once magnetized, tend to retain their magnetism. It requires more energy to demagnetize them than those with low retentivity.

How does frequency affect hysteresis?

Indeed, an increase of the frequency involves a swelling-up of the hysteresis loop at constant magnetic flux density and so an increase of iron losses. … Thus, for several levels of magnetic flux density, iron losses in electrical steel sheets are measured by varying the frequency.

What is hysteresis loss and how it is dependent on supply voltage and frequency?

Eddy current loss and hysteresis loss are almost independent of load, significantly depending on supply voltage and frequency. As the flux density or flux is constant for a given voltage and frequency, eddy current loss and hysteresis loss remain constant at any load. Therefore, these losses are called constant losses.
