How Does Otdr Work
The Laser Emits a Pulse of Light at a Specific Wavelength, This Pulse of Light Travels Along the Fiber Being Tested, as the Pulse Moves Down the Fiber Portions...

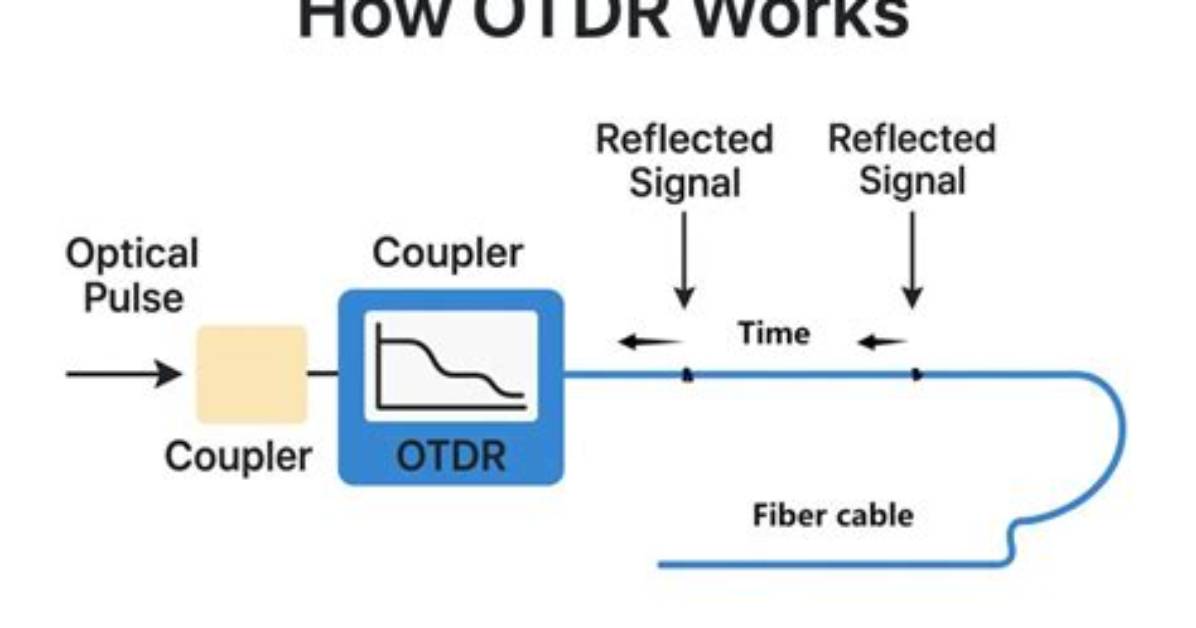

The laser emits a pulse of light at a specific wavelength, this pulse of light travels along the fiber being tested, as the pulse moves down the fiber portions of the transmitted light are reflected/refracted or scattered back down the fiber to the photo detector in the OTDR.
What is an OTDR and how it works?
OTDR, short for optical time-domain reflectometer, is an optoelectronic instrument used to characterize an optical fiber. … OTDR injects a series of optical pulses into the fiber under test. It also extracts, from the same end of the fiber,light that is scattered or reflected back from points along the fiber.
Must Read
How do you use OTDR?
- Turn on OTDR and allow time to warm-up.
- Clean all connectors and mating adapters.
- Attach launch cable to OTDR. Attach receive cable (if used) to far end of cable.
- Set up test parameters on OTDR.
- Attach cable to test to end of launch cable. Attach receive cable (if used) to far end of cable.
- Acquire trace.
