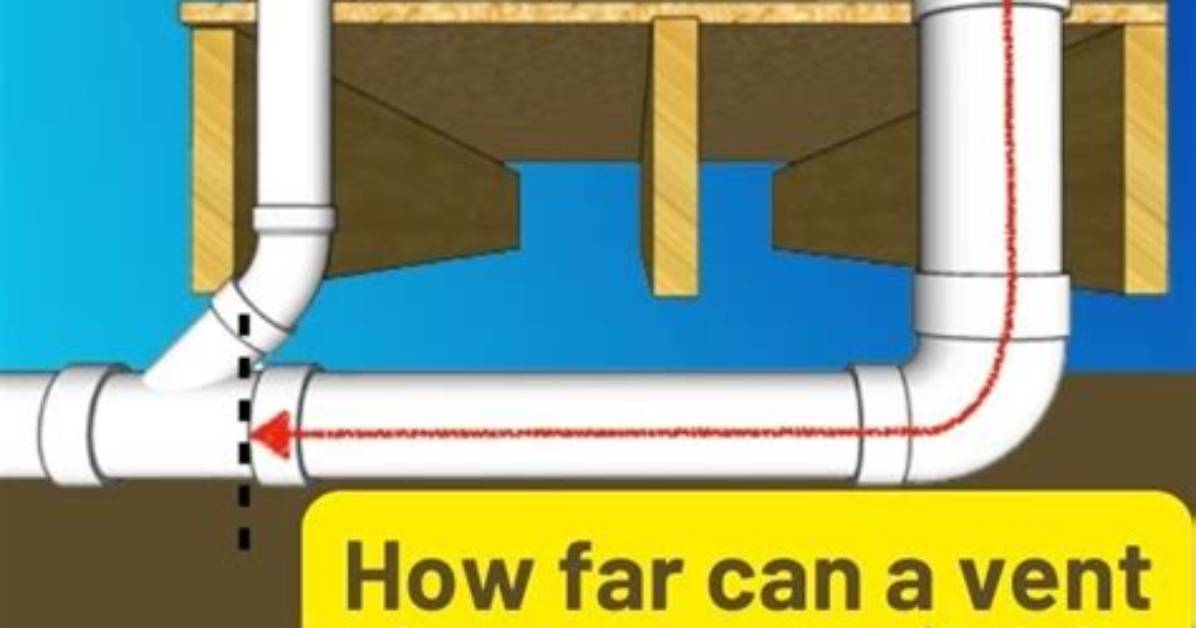

How Far Can a Vent Be from a Trap?
909.1 Distance of Trap from Vent Size of Trap (Inches) Slope (Inch per Foot) Distance from Trap (Feet) 11/2 1/4 6 2 1/4 8 3 1/8 12 4 1/8 16. Besides, How Far...
| SIZE OF TRAP (inches) | SLOPE (inch per foot) | DISTANCE FROM TRAP (feet) |
|---|---|---|
| 11/2 | 1/4 | 6 |
| 2 | 1/4 | 8 |
| 3 | 1/8 | 12 |
| 4 | 1/8 | 16 |
.
Besides, how far can a vent pipe be from the drain?
The only vertical pipe of a combination drain and vent system shall be the connection between the fixture drain and the horizontal combination drain and vent pipe. The maximum vertical distance shall be 8 feet (2438 mm).
Subsequently, question is, where should a plumbing vent be located? Plumbing air vents also prevent sewer gases from entering the home and allow wastewater gas and odor to escape. Plumbing vent pipes are located on roofs, away from windows or air conditioning units, so that the fumes can easily dissipate.
One may also ask, how far can a vent be from a washing machine?
Venting the Standpipe The vent must rise a minimum distance from the trap that depends on the sizes of the pipes you use for the drain and the vent itself; for a 2-inch drain line, this distance is usually 5 feet.
How far can a trap be from a drain?
Maximum Distance According to the International Residential Code, the maximum vertical distance between the sink drain and the entrance to the p-trap is 24 inches.
