How Is Die Area Calculated

Technology Inputs: Gate Density per sq. … Design Inputs: … Die area calculation:Die Area in sq.mm = {[(Gate count + Additional gate count for CTS & ECO) / Gate density] + IO area + Mem, Macro area} / Target utilization.Die Area = {[(G + T + E) / D] + I + M} / U.Aspect ratio, width, height calculation:

How is die size calculated?

• Technology Inputs: Gate Density per sq. …
• Design Inputs: …
• Die area calculation:
• Die Area in sq.mm = {[(Gate count + Additional gate count for CTS & ECO) / Gate density] + IO area + Mem, Macro area} / Target utilization.
• Die Area = {[(G + T + E) / D] + I + M} / U.
• Aspect ratio, width, height calculation:

What does die size mean?

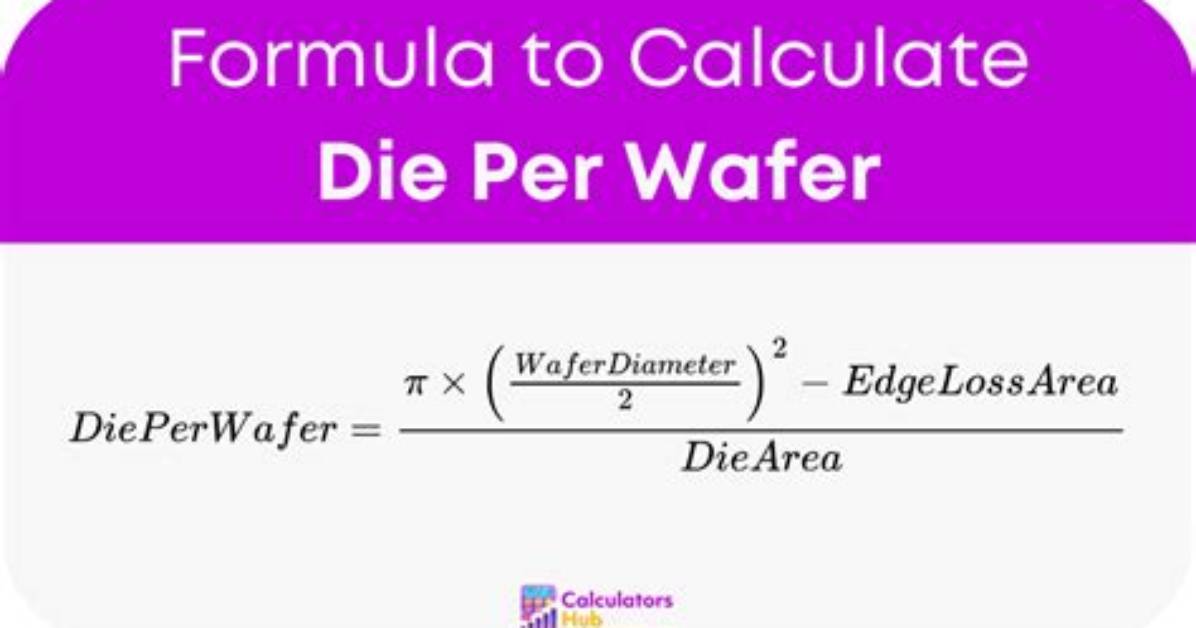

The die size of a specific chip is the physical dimensions of a bare die. … Since the die size and shape determines the total number of dies that may be realized from a single wafer of a certain size on a specific process node, the die size is a strong indicator of manufacturing cost.
