How Is Sheave Diameter Measured
This Is Simple — Lay the Ruler’s Edge Across the Center of the Sheave and Measure the Diameter. with That Measurement, You Can Calculate the Id by Measuring...
This is simple — lay the ruler’s edge across the center of the sheave and measure the diameter. With that measurement, you can calculate the ID by measuring the depth of the groove. … Double the depth of the groove, and subtract that value from the OD.
What is sheave diameter?
A sheave can also refer to a pulley which has an adjustable operating diameter for use with a mechanical belt. … The two main “halves” of the pulley can be moved closer together or farther apart, thus altering the operational diameter.
What size sheave do I need?

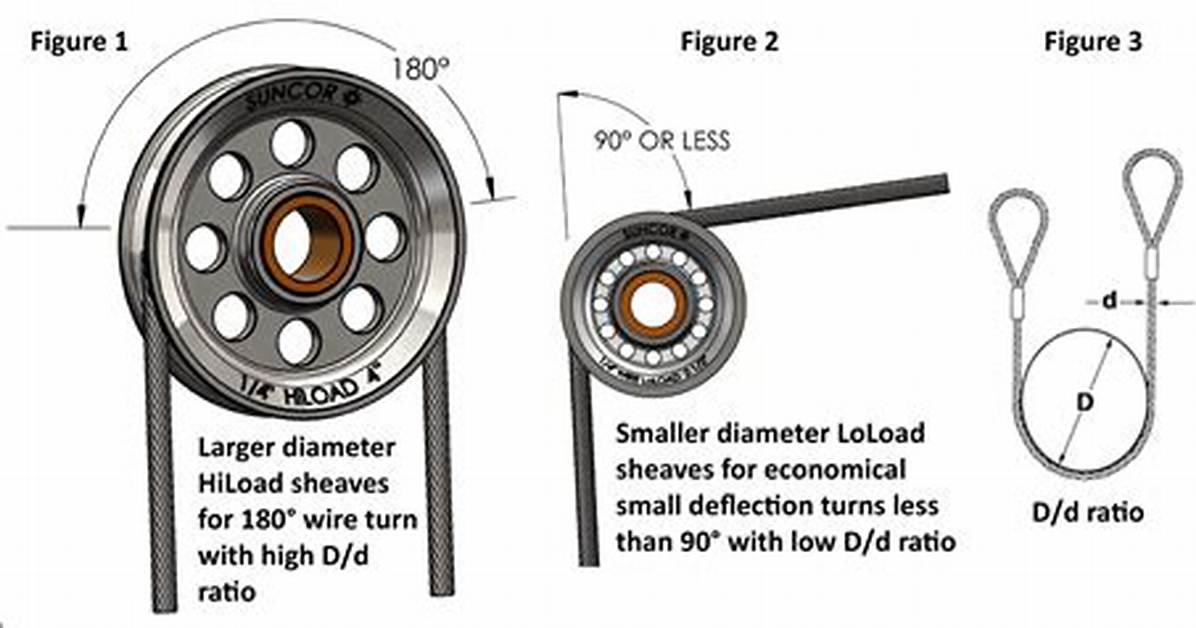

Since the Outside Diameter of a sheave is 1 to 2 inches greater than the Pitch Diameter, we recommend a sheave diameter at least 20 times that of its rope.
