RC phase-shift oscillators use resistor-capacitor (RC) network (Figure 1) to provide the phase-shift required by the feedback signal. They have excellent frequency stability and can yield a pure sine wave for a wide range of loads. Ideally a simple RC network is expected to have an output which leads the input by 90o.
How does RC phase shift oscillator work?
A phase shift oscillator can be defined as; it is one kind of linear oscillator which is used to generate a sine wave output. The phase of the amplifier can be shifted to 1800 at the oscillation frequency by using a feedback network to provide a positive response. ...
How many RC section in a phase shift oscillator?

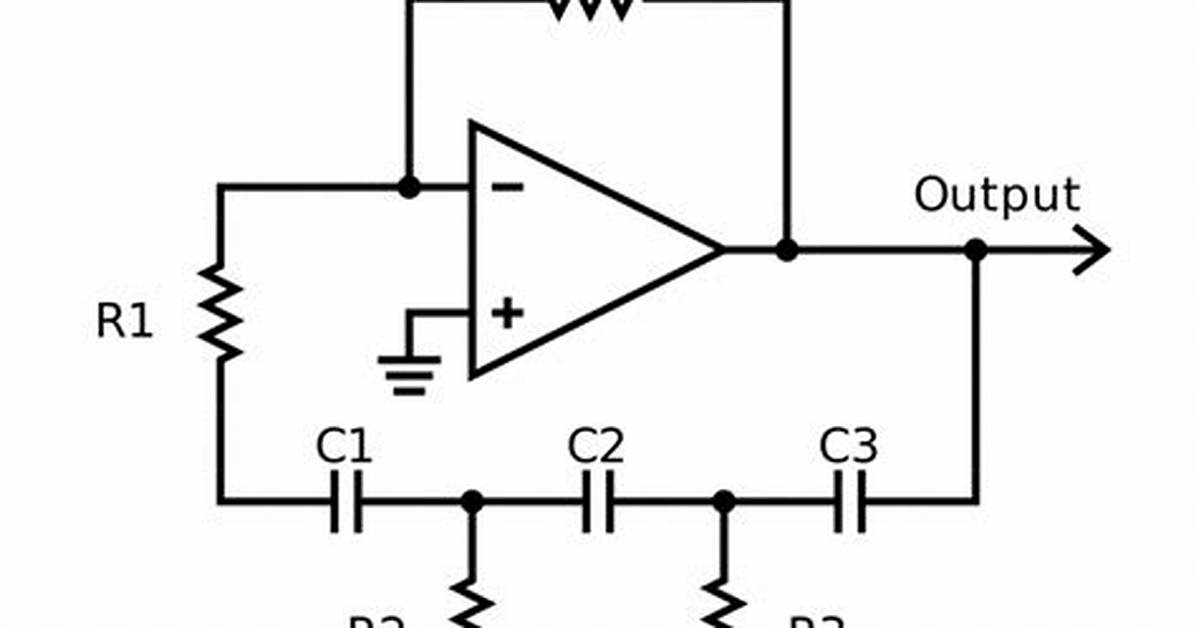

RC phase shift oscillator as shown in the figure is used to invert the input for a 180° phase difference. 180° is obtained by 3 RC sections to provide sustained oscillations. The RC Phase shift Oscillator has a fixed frequency and is used at lower frequencies.
