How Remap_Pfn_Range Remaps Kernel Memory to User Space?

It's simple really, kernel memory (usually) simply has a page table entry with the architecture specific bit that says: "this page table entry is only valid while the CPU is in kernel mode".

What remap_pfn_range does is create another page table entry, with a different virtual address to the same physical memory page that doesn't have that bit set.

Usually, it's a bad idea btw :-)

The core of the mechanism is page table MMU:

Related image1

or this:

Both picture above are characteristics of x86 hardware memory MMU, nothing to do with Linux kernel.

Below described how the VMAs is linked to the process's task_struct:

Related image

_{(source: slideplayer.com)}

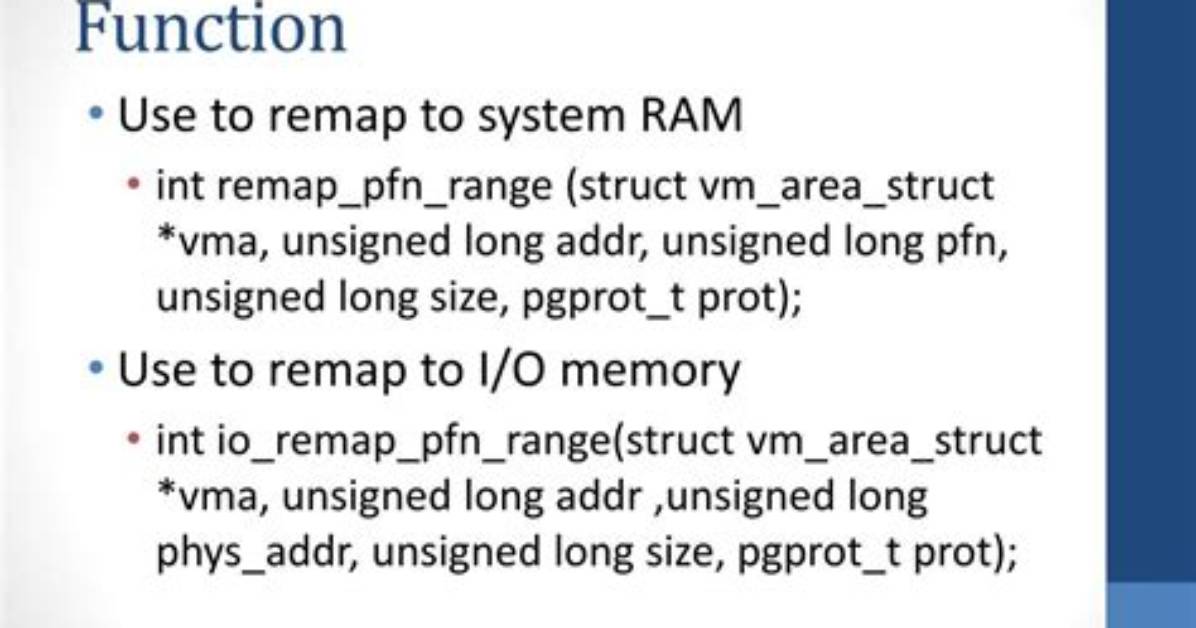

And looking into the function itself here:

The data in physical memory can be accessed by the kernel through the kernel's PTE, as shown below:

_{(source: tldp.org)}

But after calling remap_pfn_range() a PTE (for an existing kernel memory but to be used in userspace to access it) is derived (with different page protection flags). The process's VMA memory will be updated to use this PTE to access the same memory - thus minimizing the need to waste memory by copying. But kernel and userspace PTE have different attributes - which is used to control the access to the physical memory, and the VMA will also specified the attributes at the process level:

vma->vm_flags |= VM_IO | VM_PFNMAP | VM_DONTEXPAND | VM_DONTDUMP;
