How Test Schottky Diode?
Connect the Red Positive Test Lead to the Anode of the Schottky Diode and the Black Common Test Lead to the Cathode of the Diode. Listen for a “Beep” or a...

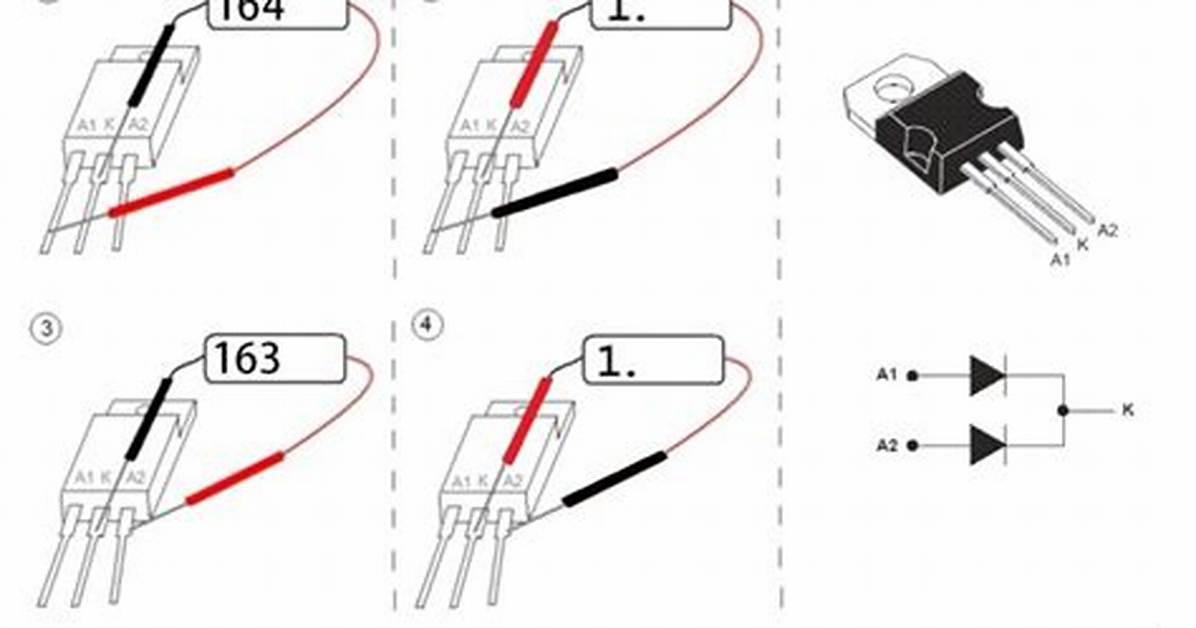

Connect the red positive test lead to the anode of the Schottky diode and the black common test lead to the cathode of the diode. Listen for a “beep” or a “buzz” from the multimeter. If the Schottky diode responds as expected, the multimeter will sound a tone.
How do you test a Schottky diode using an analog multimeter?
How to Test a Diode using Analog Multimeter?
- Keep the multimeter selector switch in low resistance value.
- Connect the diode in the forward-biased condition by connecting the positive terminal to anode and negative to the cathode.
- If the meter indicates a low resistance value, then it says that the diode is healthy.
How do you test a diode with a multimeter in a circuit?
The Diode Test procedure is conducted as follows:
- Make certain a) all power to the circuit is OFF and b) no voltage exists at the diode. Voltage may be present in the circuit due to charged capacitors. ...
- Turn the dial (rotary switch) to Diode Test mode. ...
- Connect the test leads to the diode. ...
- Reverse the test leads.
