How to Identify Single Mode and Multimode Fiber

Key Steps for Cable Identification
Check the jacket color. In non-military applications: OM1/OM2 = orange. OM3 = aqua. Read the print legend. Look for OM1 (62.5/125), OM2 (50/125), OM3 (50/125), OM4 (50/125) or OS2 (9/125) Look for a rating, such as OFNP or OFNR.

What color is multimode fiber?

Multimode cables are generally color-coded orange or aqua; the Aqua Fiber Patch Cables are for higher performance 10Gbps, 40Gbps, and 100Gbps Ethernet and fiber channel applications.

Which is better single mode or multimode fiber?

Although single-mode optical fiber holds advantages in terms of bandwidth and reach for longer distances, multimode optical fiber easily supports most distances required for enterprise and data center networks, at a cost significantly less than single-mode.

How do I test my single mode fiber?

Some may ask what the ‘correct method for fiber testing is’. The most accurate way for fiber testers to measure the overall optical loss in a fiber is to inject a known level of light in one end and measure the level of light at the other end, using an OLTS.

What is Visual Fault Locator?

A visual fault identifier or visual fault locator (VFI / VFL) is a visible red laser designed to inject visible light energy into a fiber. Sharp bends, breaks, faulty connectors and other faults will “leak” red light allowing technicians to visually spot the defects.

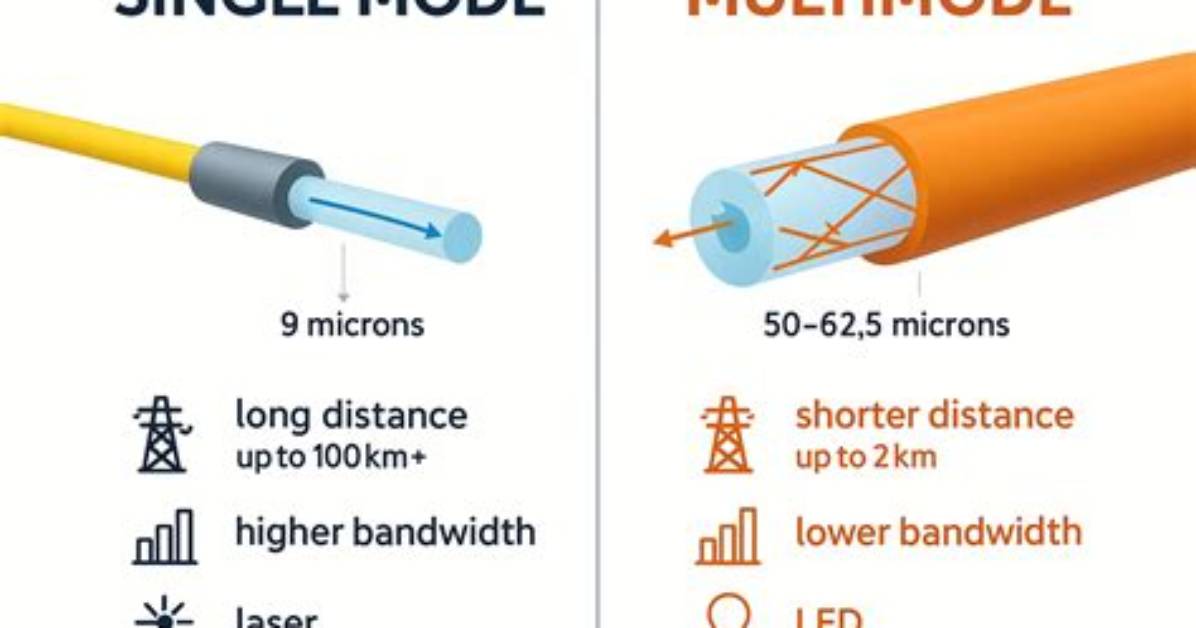

What is single mode fiber and multimode fiber?

Single mode fiber: a fiber featuring a small light-carrying core of about 9 micrometers (µm) in diameter. For reference, a human hair is closer to 100 µm. The core is surrounded by a cladding that brings the overall diameter of the optical fiber to 125 µm. Multimode fiber: a fiber with a core of 50 µm or above.

Is OM3 single mode or multimode?

Two main types of fiber glass exist: single mode (OS1, OS2) and multimode (OM1, OM2, OM3, OM4). Single mode fiber has a small light-carrying core of 8 to 10 microns (μm) in diameter.

Is 50 micron fiber single mode?

Fiber types are identified by the diameters of the core and cladding, expressed in microns. Multimode fiber is available in two sizes, 62.5 or 50 microns, and four classifications: OM1 (62.5/125 µm), OM2, OM3, OM4 (50/125 µm). The diameter of a single mode core is 9µm.

How do I know if my fiber is OM1 or OM2?

Each type has different properties.
OM1 cable typically comes with an orange jacket and has a core size of 62.5 micrometers (µm). OM2 also has a suggested jacket color of orange. OM3 has a suggested jacket color of aqua. OM4 also has a suggested jacket color of aqua.

Is blue fiber single mode?

In the center, orange cable means multimode fiber and the beige connector indicates 62.5/125 fiber. On the right, the yellow patchcord indicates singlemode fiber and the blue connector means it is a regular PC polished connector, If it were an APC connector, it would be green.

What are the 12 colors of fiber?

***The optical fiber color code from fiber number 1 to 12: blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua.

What is LC and SC?

(Lucent Connector) A miniaturized version of the fiber-optic SC connector. It looks somewhat like the SC, but is half the size with a 1.25mm ferrule instead of 2.5mm. See SC connector. LC and SC Connectors. LC and SC optical connectors use a push-pull plug similar to audio and video plugs and sockets.

How can you tell the difference between an ST and an SC connector?

SC connectors are typically used in data communication, CATV, and telephony environments. ST stands for straight tip, a high-performance fiber-optic connector with round ceramic ferrules and bayonet locking features. ST connectors are more common than SC connectors.

What is the difference between SMF and MMF?

The most significant difference between SMF and MMF is that SMF provides higher spectral efficiency. It can support more traffic over a single fiber using more channels at higher speeds. In MMF, cabling support for higher bit rates is limited by its large core size.
