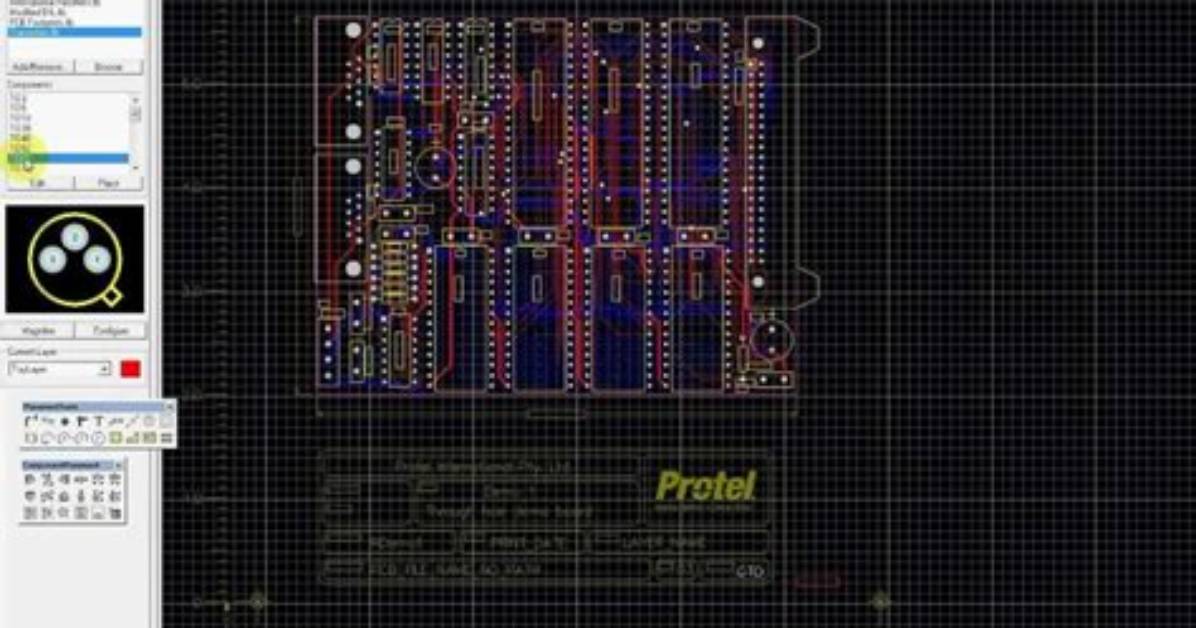

How to Open Protel Pcb File in Altium?
To Import a 99 Se Database, Select File » Importer Wizard from the File Menu. Select the 99Se Ddb File Type to Import. the Import Process Requires All Files...
To import a 99 SE database, select File » Importer Wizard from the File menu. Select the 99SE DDB File Type to import. The import process requires all files, projects and design workspaces that are currently open in Altium Designer to be closed. If this is not the case, you will be prompted to do this first.
How do I start a PCB in Altium?
- From the Main Menu, select File > New > Project > PCB Project. ...
- Open your saved schematic file. ...
- After the modification of schematic, it's time to update PCB from the schematic. ...
- Circuit board design should be completed with a certain boundary so board shape must be redefined.
How do I import OrCAD PCB to Altium?
Importing OrCAD Files. The OrCAD design file importer is available through Altium Designer's Import Wizard (File » Import Wizard) by selecting the Orcad Designs and Libraries Files option on the Wizard's Select Type of Files to Import page.
