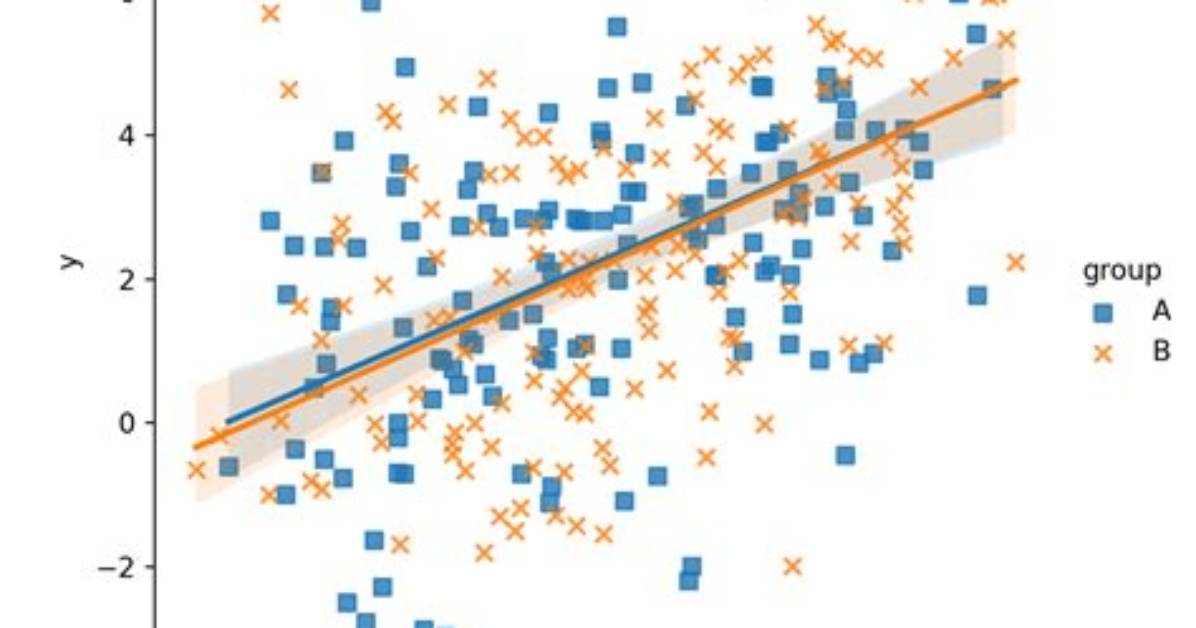

How to Scatter Plot Each Group of a Pandas Dataframe
I Am Making a Scatter Plot with the Geyser Dataset from Seaborn. I Am Coloring the Points Based on the 'Kind' Column but for Some Reason, the Legend Only Shows...
I am making a scatter plot with the geyser dataset from seaborn. I am coloring the points based on the 'kind' column but for some reason, the legend only shows 'long' but leaves out 'short'. I don't know what I am missing. I also was wondering if there is a simpler way to color code the data one that does not use a for-loop. Thanks!
x = geyser_df['waiting']
y = geyser_df['duration']
col = []
for i in range(len(geyser_df)):
if (geyser_df['kind'][i] == 'short'):
col.append('MediumVioletRed')
elif(geyser_df['kind'][i] == 'long'):
col.append('Navy')
plt.scatter(x, y, c=col)
plt.legend(('long','short'))
plt.xlabel('Waiting')
plt.ylabel("Duration")
plt.suptitle("Waiting vs Duration")
plt.show()
2 Answers
- The correct way to do this with pandas is with
pandas.DataFrame.groupbyandpandas.DataFrame.plot. - Tested in
python 3.8.12,pandas 1.3.4,matplotlib 3.4.3,seaborn 0.11.2
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
# load data
df = sns.load_dataset('geyser')
# plot
fig, ax = plt.subplots(figsize=(6, 4))
colors = {'short': 'MediumVioletRed', 'long': 'Navy'}
for kind, data in df.groupby('kind'):
data.plot(kind='scatter', x='waiting', y='duration', label=kind, color=colors[kind], ax=ax)
ax.set(xlabel='Waiting', ylabel='Duration')
fig.suptitle('Waiting vs Duration')
plt.show()
- The easiest way is with
seaborn, a high-level API for matplotlib, wherehueis used to separate groups by color.sns.scatterplot: an axes-level plotsns.relplot: a figure-level plot wherekind='scatter'is the default plot style
fig, ax = plt.subplots(figsize=(6, 4))
colors = {'short': 'MediumVioletRed', 'long': 'Navy'}
sns.scatterplot(data=df, x='waiting', y='duration', hue='kind', palette=colors, ax=ax)
ax.set(xlabel='Waiting', ylabel='Duration')
fig.suptitle('Waiting vs Duration')
plt.show()
colors = {'short': 'MediumVioletRed', 'long': 'Navy'}
p = sns.relplot(data=df, x='waiting', y='duration', hue='kind', palette=colors, height=4, aspect=1.5)
ax = p.axes.flat[0] # extract the single subplot axes
ax.set(xlabel='Waiting', ylabel='Duration')
p.fig.suptitle('Waiting vs Duration', y=1.1)
plt.show()
You're passing x = geyser_df ['waiting'] and y = geyser_df ['duration'] as a single dataset which causes plt.scatter to only use as label="long" as legend. I don't have enough experience using this type of libraries but to reproduce the example you describe you need to write a program like this:
long = [[], []]
short = [[], []]
col=['MediumVioletRed', 'Navy']
for i in range(len(geyser_df["kind"])):
if (geyser_df["kind"][i] == "long"):
long[0].append([geyser_df['waiting'][i]])
long[1].append([geyser_df['duration'][i]])
else:
short[0].append([geyser_df['waiting'][i]])
short[1].append([geyser_df['duration'][i]])
plt.scatter(long[0], long[1], c=col[1], label="long")
plt.scatter(short[0], short[1], c=col[0], label="short")
plt.legend()
plt.xlabel('Waiting')
plt.ylabel("Duration")
plt.suptitle("Waiting vs Duration")
plt.show()
